V-40

V-40

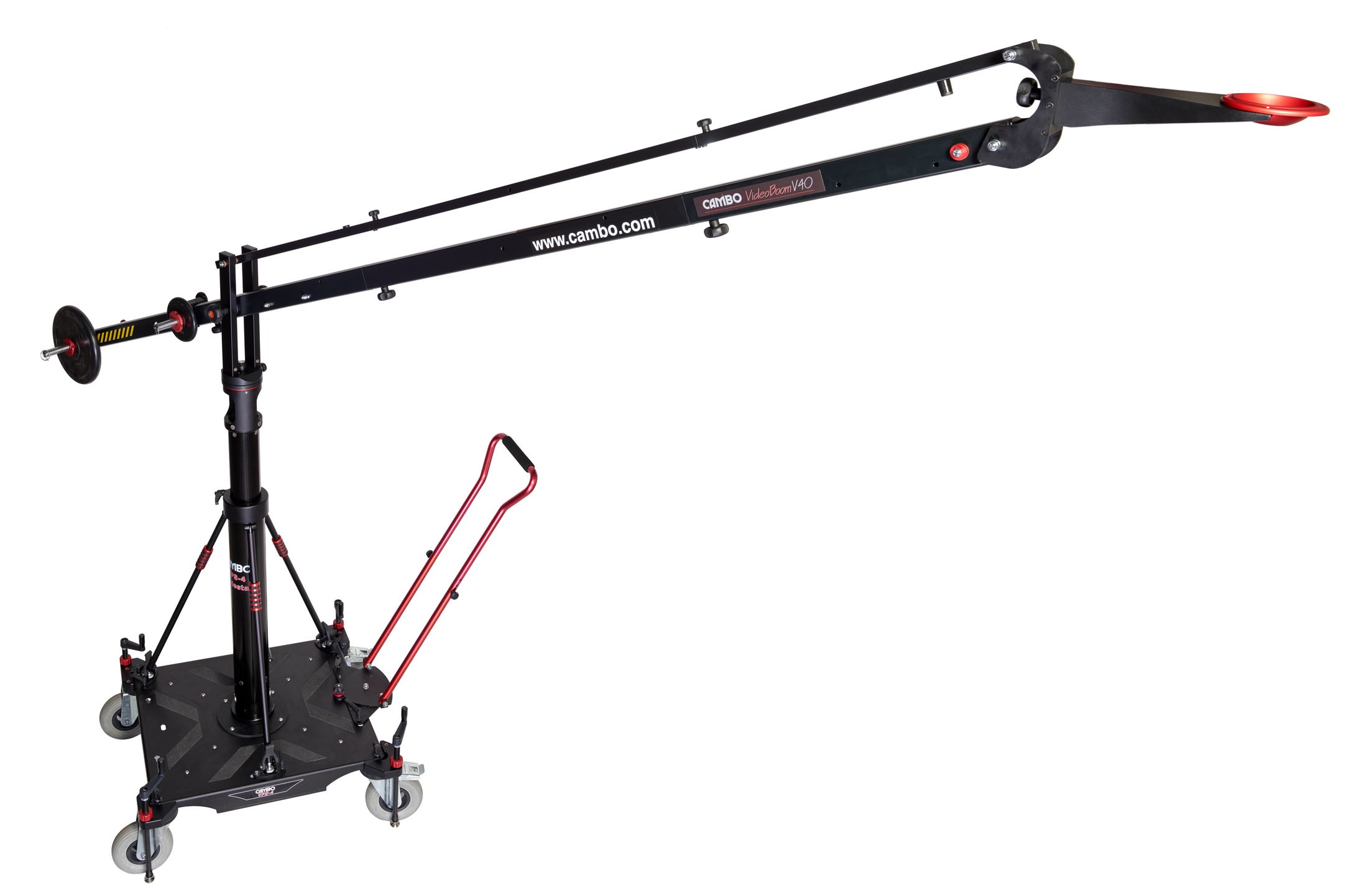

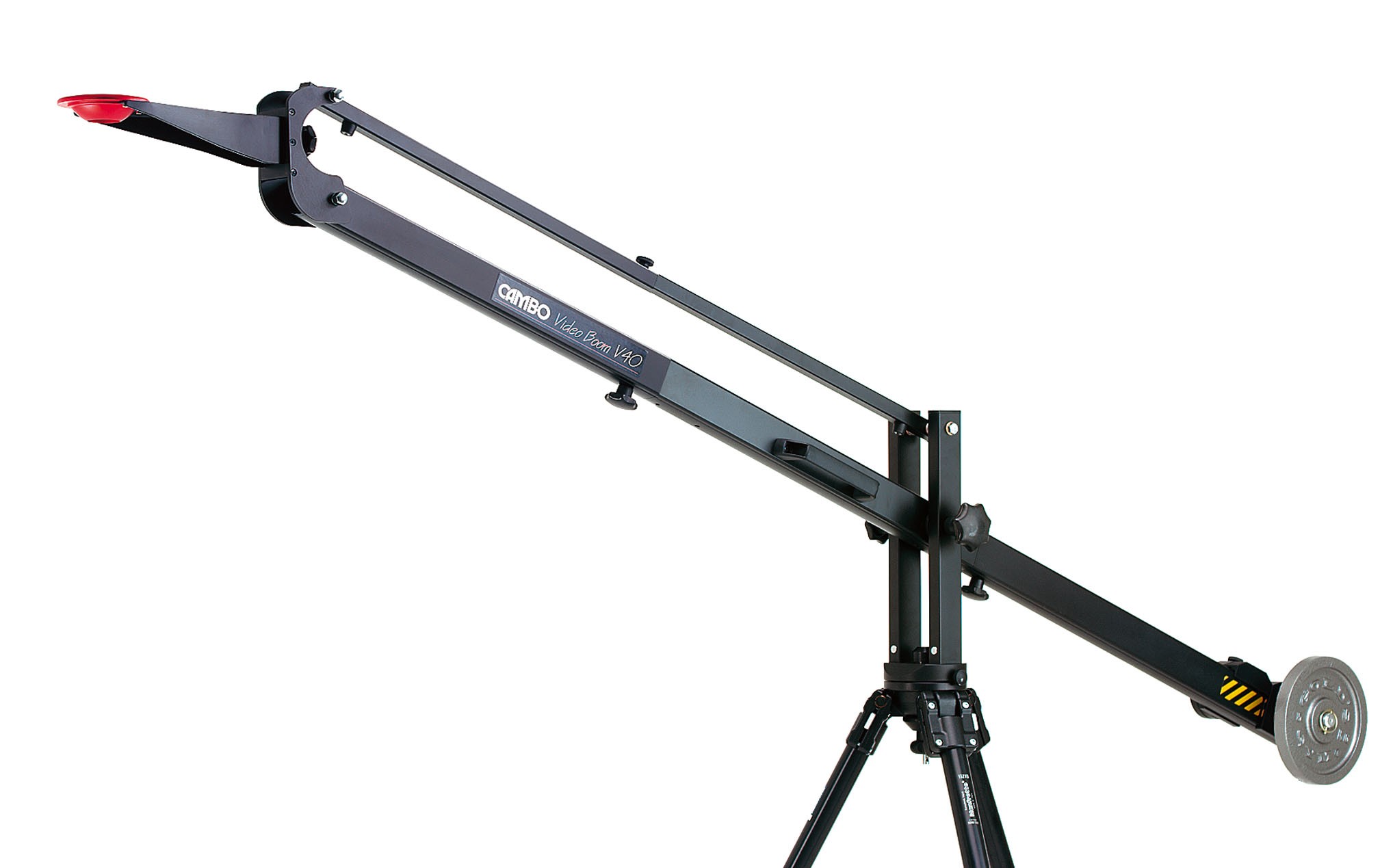

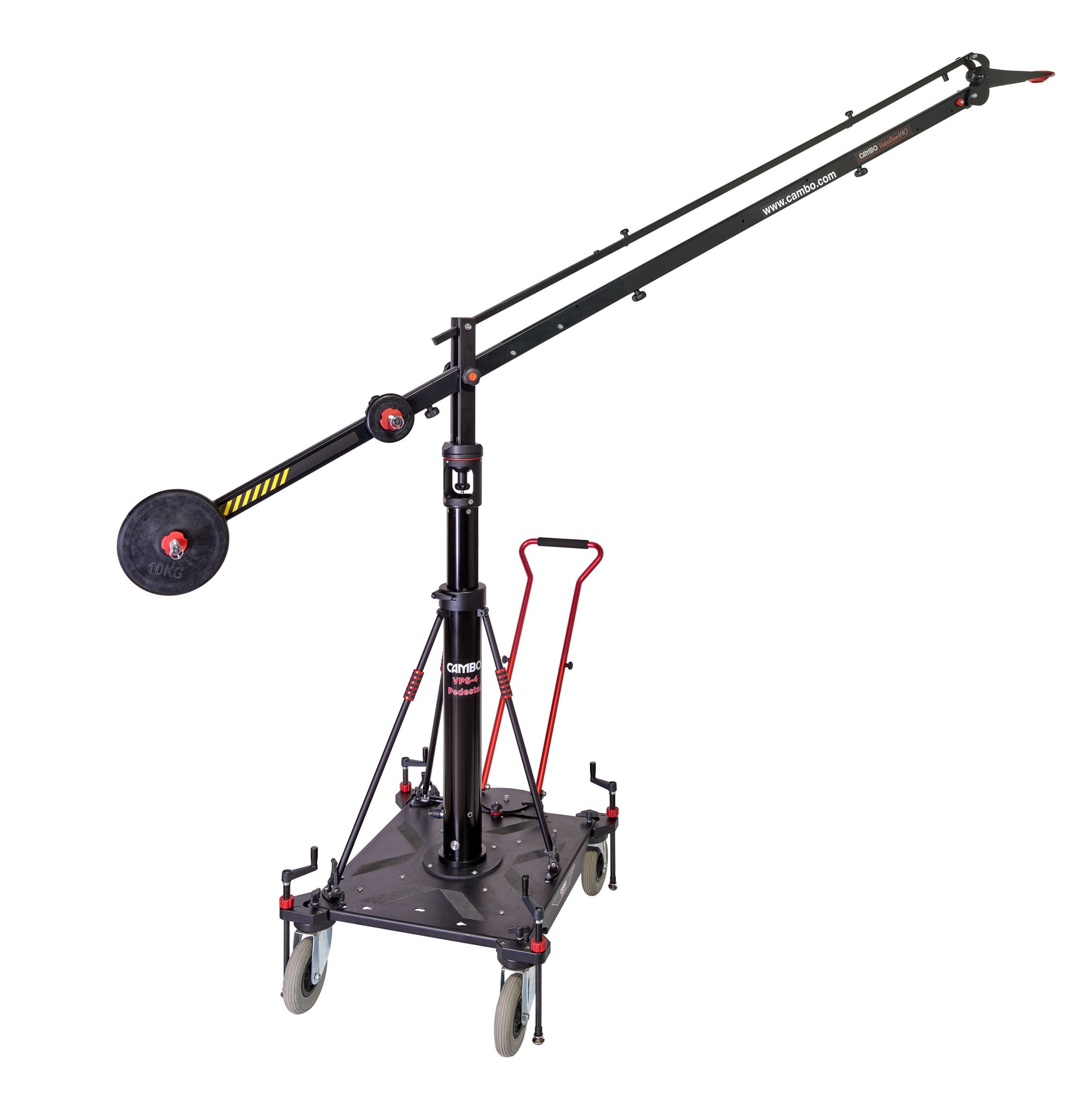

The V40 is a complete boom system. Its modular approach offers sophisticated versatility you can't get anywhere else. Its unique interlocking joining system provides setup in minutes without sacrificing weight capacity.

The V40 features a smart counterbalance system that uses standard weights (not included). Its integrated fine-tuning block allows you to change lenses and batteries and adjust for the weight difference with ease. Disassembled, the longest component of this system measures less than 1m (40"). Weighing only 11Kg (25lbs), this compact boom travels anywhere - without breaking your back.

Note: Counterweights NOT included. V40 takes normal Fitness Counterweights

100mm (4") bowl arm.
Smooth pan-action base with locking facility.
Provides easy adjustment for a variety of camera weights and boom lengths.
Quick detachment to add accessories like the PT900. Universal tripod mount - 75mm (3") and 100mm (4").
System includes one V47 sliding weight support.

Configurations

The V-40 can be configured in various lengths. This is made possible through the below described combinations of extensions and stabalisation kits.

Length	Configuration
165 cm	V-40
265 cm	V-40 V-55 VCSS-100-0
365 cm	V-40 V-54 V-55 2x VCSS-200-60
465 cm	V-40 V-54 V-55 3X VCSS-300-60
565 cm	V-40 V-54 V-55 4x VCSS-400-60
665 cm	V-40 V-54 V-55 5x VCSS-500-60
