WRS-1600

WRS-1600

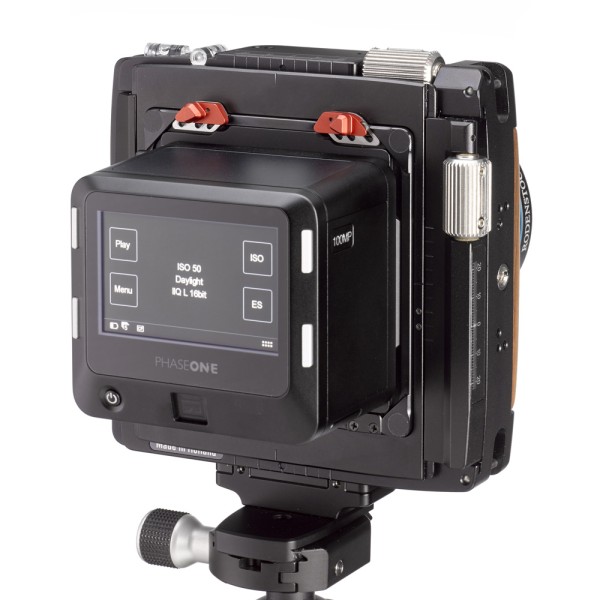

The Cambo WRS-1600 technical camera offers generous shift and rise/fall movements (20/20 horizontally and 20/20 vertically). Movements are driven by accellerated spindle gears, operated by XL size stainless steel driveknobs offering excellent grip. A unique feature is the ability to rotate between landscape and protrait orientation within seconds. Without the need to remove the digital back and still keeping the optical center in the same position. The body is machined out of high grade aluminium and built to last.

Its large movements in a relatively compact form factor make the WRS-1600 the tech cam of choice for architectural, interior and landscape photographers. It offers optimum perspective control and the ability to create amazing panoramic images by flat stitching.

The WRS-1600 shares the lens mount with the other Cambo WDS/WRS and Phase One XT tech cams. The rear interface is interchangeable, adapters are available for virtually any digital back. This also enables the use of short-barrel lenses, which require a spacer at the rear of the camera to make good use of the large image circles these lenses have to offer. Many of the lens panels can be fitted with an optional Tilt/Swing mechanism.

New Rodenstock Digaron lenses are available in Aperture Mount or X-Shutter. Cambo offers a retroffiting service for many legacy Schneider and Rodenstock lenses. This gives access to an extensive range of focal lengths, reaching from 19 to 180mm and beyond on request.


Product details

Features
  • Fully compatible with Cambo’s WRS system
  • Lightweight only 0.92 kgs (excl. lens)
  • Stitching possibilities (2-way / 4-way)
  • Milimeter scales for movements
  • Movement indicators on rear sides
  • Removable cable release included
  • Integrated Arca compatible 1/4 - 3/8" tripod mount
  • 3 spirit levels
  • Mount for 2-point fixation accessory mount
  • Additional LED light included
Exterior
  • High grade aluminium body in black anodised finish
  • Wooden handgrip with cable release support
  • Stainless steel XL drive knobs for shifts and rise / fall
    Accessories and options
    • Optional WTS Tilt-Swing Lenspanels
    • Broad range of optics, including Phase One X-Shutter lenses
    • Retrofitting of legacy lenses offered

    Interfaces and Lenspanels
    Interfaces

    Like the other Cambo Wide models, the WRS-1600 features an interchangeable interface for digital backs. Mounts are available for Hasselblad-V, Hasselblad-H, PhaseOne/Mamiya, Contax 645AF, Sinar 30/45 and Leaf AFi/Sinar HY6.

    Go to adapters

    Lenspanels

    In order to accomplish nearly any architectural or landscape assignment, we offer a broad range of Rodenstock HR Digaron lenses. Choose from focal lengths ranging from 23mm up to 180mm. Legacy lenses - like Schneider Kreuznach - can be retrofitted on request.

    Go to Lenspanels


    Technical details
    Size180 x 160mm (WxH) incl. handgrips and tripod mount
    Weight0.92 Kgs (Excl. lens)
    Horizontal shift 40 mm (20mm left/ 20mm right)
    Vertical shift(20mm/ 20mm)
