PCH
PCH

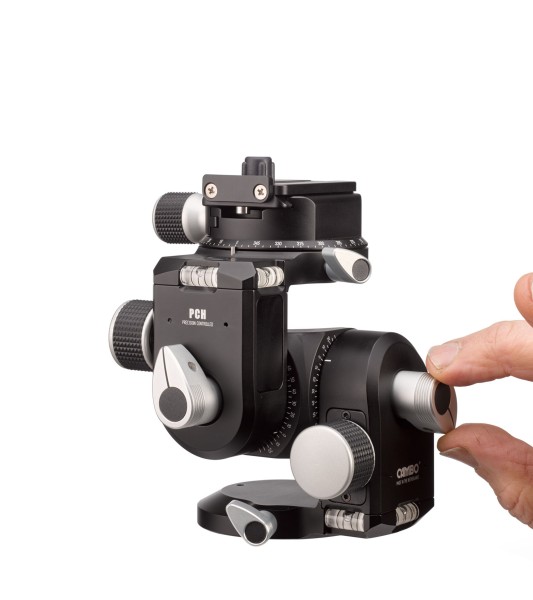

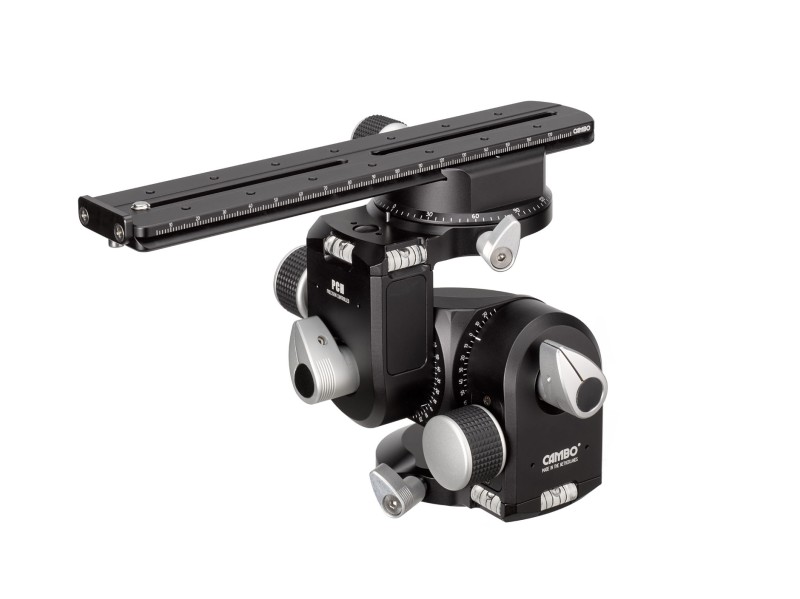

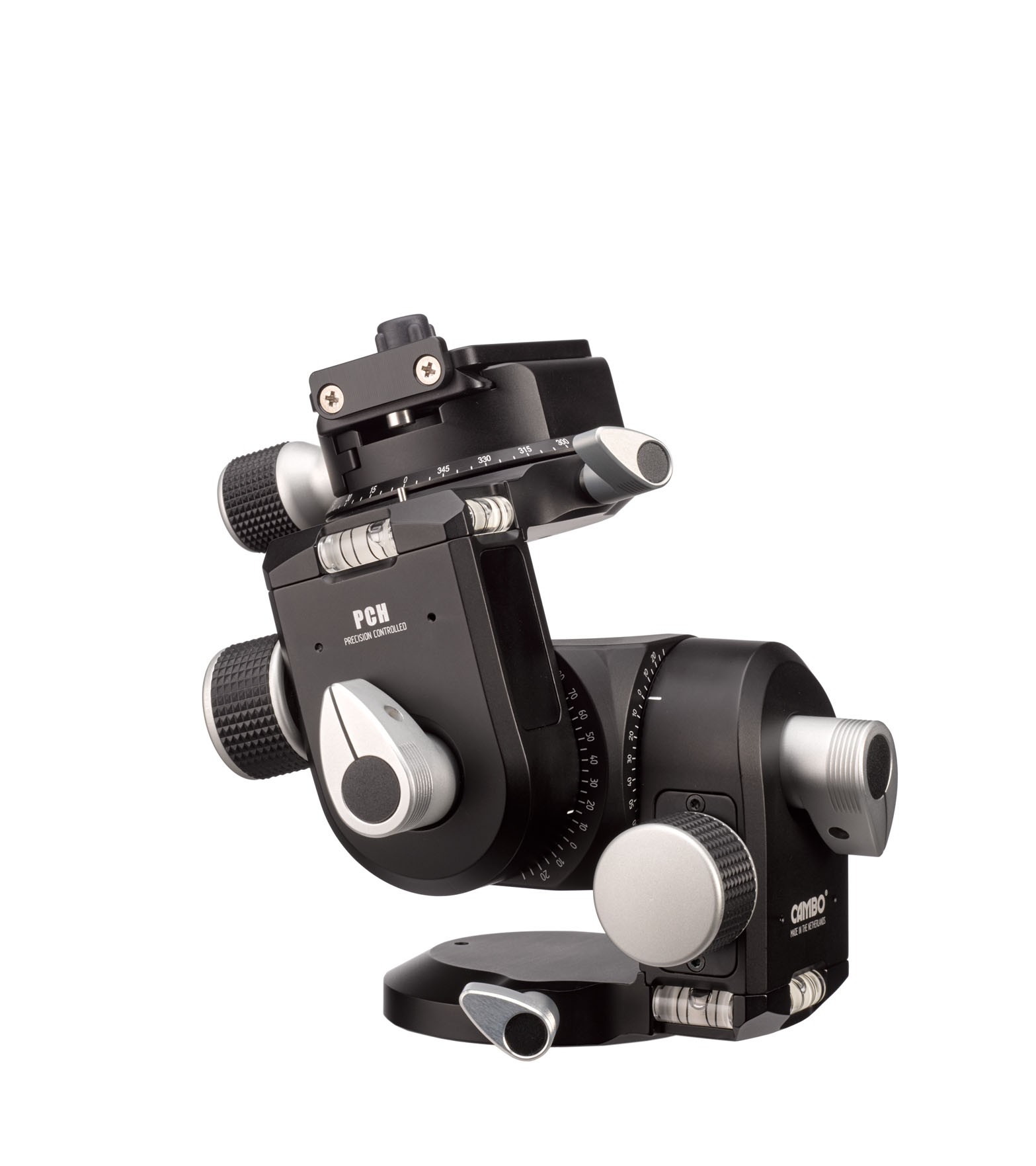

The PCH and PCF geared heads combine the speed of a ball head with the fine tuning only fully geared heads can offer.The geared movements are self-locking and available in any position of the head. The bottom as well as the top rotate 360°. After levelling, the top rotation can be used for panoramic shooting. The optional QR-XL extra long quick release plate may be added to facilitate rotation around the nodal point.

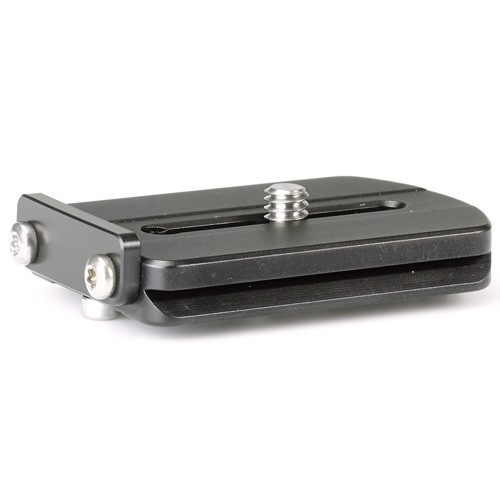

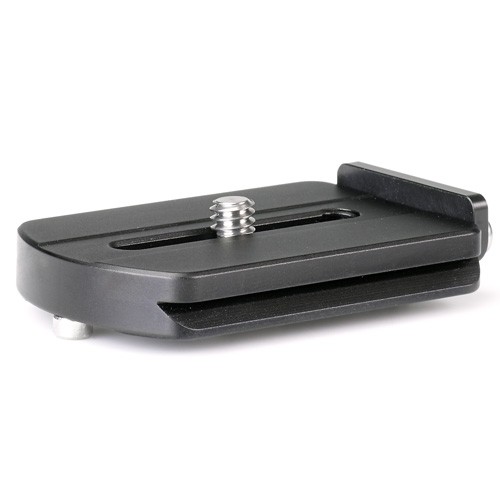

Any camera with an ARCA-style mounts directly onto the PCH. This includes the Cambo ACTUS and Cambo WRS-series. The PCH comes with an 1/4" QR plate.
Key features
- 360º manual panning at the top and bottom plate
- Position click indication every 90º at the top and bottom plate

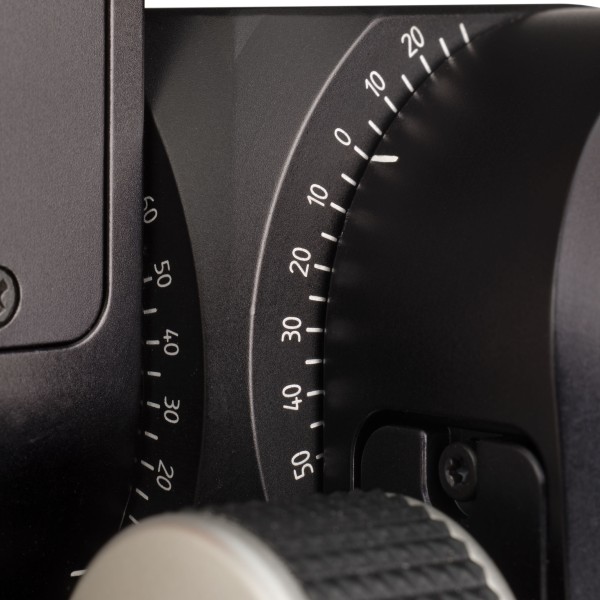

- 140º X-axis tilt (30º backwards 110º forward)

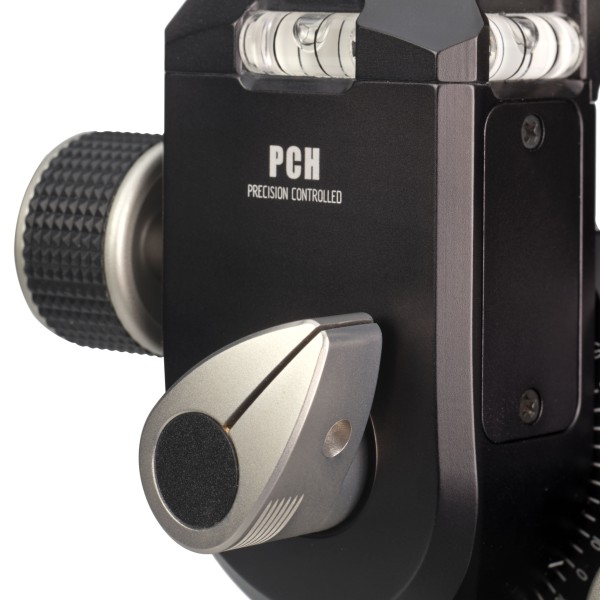

- Separate manual (fast) or geared (fine) movement around the X-axis
- 140º Y-axis pivot (30º backwards 110º forward)
- Separate manual (fast) or geared (fine) movement around the Y-axis
- X-, Y- and Z-axis rotate over the same point
- When X-, Y- and Z-axis locking knobs are open the PCH can move freely like a normal spherical head.
- Adjustable geared friction
- Adjustable manual friction
- Arca compatible QR clamp
- 4 large spirit levels
- Durable stainless steel 3/8’’ and 1/4’’ tripod mounting options.
Dimensions
| Height | 130 mm (incl. QR-plate) |
|---|---|
| Width | 110 mm |
| Depth | 102 mm |
| Weight | 1200 gram |
| Load Capacity | 6 kg (13.2 lbs) |
