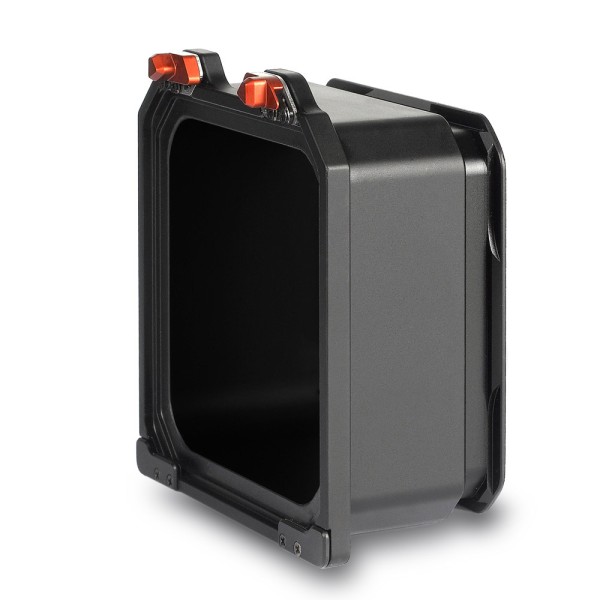

WRS-1048
Rear spacer for short barrel lenses and macro photography
WRS-1048
Rear spacer for short barrel lenses and macro photography
The WRS-1048 usually comes in combination with Cambo short barrel lenses.
However, this rear spacer can also be used as a Macro-Adapter in combination with regular WDS Lenspanels, extending the focal plane distance with 48mm. This allows a WDS-556 Lenspanel with 47 or a WDS-557 with 50mm Lens to shoot at a 1:1 ratio, and shorter lenses enlarge even with a higher rate!
The WRS-1017 and WRS-1010 are similar macro adapters with extensions of 17mm and 10mm.
Samples of focussing range with a few lenses, based on the travel of the normal Rodenstock or Schneider helical focussing mounts, when adding the WRS-1048 macro-interface:
- 50 mm focussing between 0.11 -- 0.10 mtr
- 60 mm focussing between 0.14 -- 0.13 mtr
- 70 mm focussing between 0.17 -- 0.16 mtr
- 72 mm focussing between 0.19 -- 0.18 mtr
- 80 mm focussing between 0.21 -- 0.20 mtr
- 90 mm focussing between 0.26 -- 0.24 mtr
- 100 mm focussing between 0.31 -- 0.29 mtr
- 120 mm focussing between 0.42 -- 0.39 mtr
Note that are individual differences between individual lenses which may result in a slight variation on above numbers.
