WRX-90

WRX-90

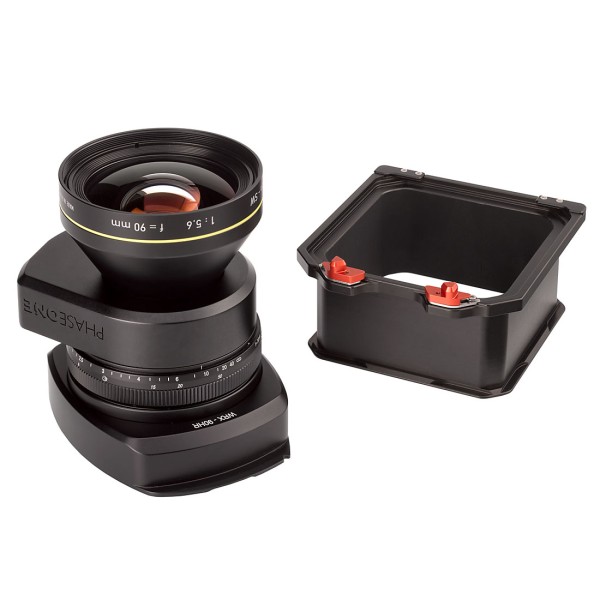

The WRX-90 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 5.6/90 HR Digaron-SW lens with Phase One X-Shutter mounted in a helical focussing mount.
This version has a split back focal length, existing of a shorter lensplate and a rear extension unit.
This combination allows for optimised shift without vignetting from the lensbarrel.

The WRX-90 fits to all Cambo Wide cameras with SLW-adapters.
In case the WRX-90 is being used on a XT body, the rear spacer can be replaced with the front spacer WRS-1049.


Product details
Shortest focus distance to object1,25 mtr
Image circle of lens at f/11120mm
Optical movements
CCD SizeMovements
 37x37mm38/38mm
33x44mm39/35mm
36x48mm37/33mm
37x49mm36/32mm
40x54mm33/29mm
 36x56mm35/29mm
Please note that some optical movements are larger than achievable due to mechanical limitation.

Camera Movements
CameraMovements Up / Down / Left / Right
WDS34 / 26 / 20 / 20mm
WRS25 / 15 / 20 / 20mm
160020 / 20 / 20 / 20mm

This 90HR Digaron-SW is also available on a Tilt/Swing Lenspanel version, see WTSX-90
