WRX-23
WRX-23

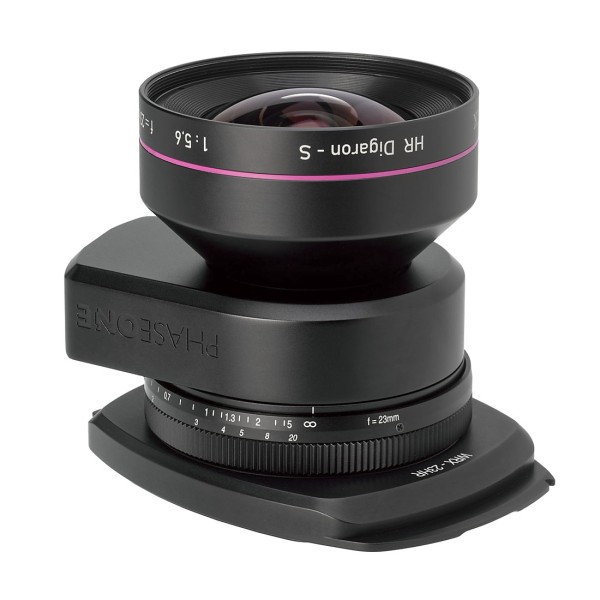

The WRX-23 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 5,6/23 HR Digaron-S lens with Phase One X-Shutter mounted in a helical focussing mount.
Features
Product details
- Shortest focus distance to object: 0,2 mtr
- Image circle of lens at f/11: 70mm
Optical Movements
| CCD size 37x37mm | 11/11 mm |
|---|---|
| CCD size 33x44mm | 11/ 9 mm |
| CCD size 36x48mm | 8/ 6 mm |
| CCD size 37x49mm | 7/ 5 mm |
| CCD size 40x54mm | 2/1 mm |
| CCD size 56x36mm | 3/ 2 mm |
Camera Movements
| Camera | Up/down/left/right |
|---|---|
| WDS | 34 / 26 / 20 / 20mm |
| WRS 5000 | 25 / 15 / 20 / 20mm |
| WRS 1600 | 20 / 20 / 20 / 20mm |
Technical details
| Aperture control | Controlled by IQ4 depending on lens |
|---|---|
| Shutter Speed | From 1/1000 s to 60 min |
| Cable connection | To PhaseOne IQ 4 back |
| Cable length | 50cm (80cm optional) |
| Power supply | No external powersupply needed |
