WRA-2180L
WRA-2180L

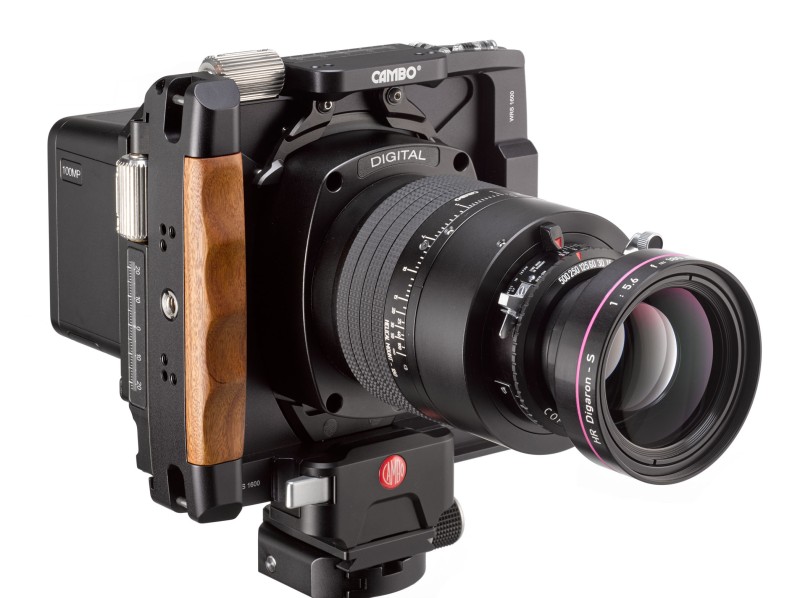

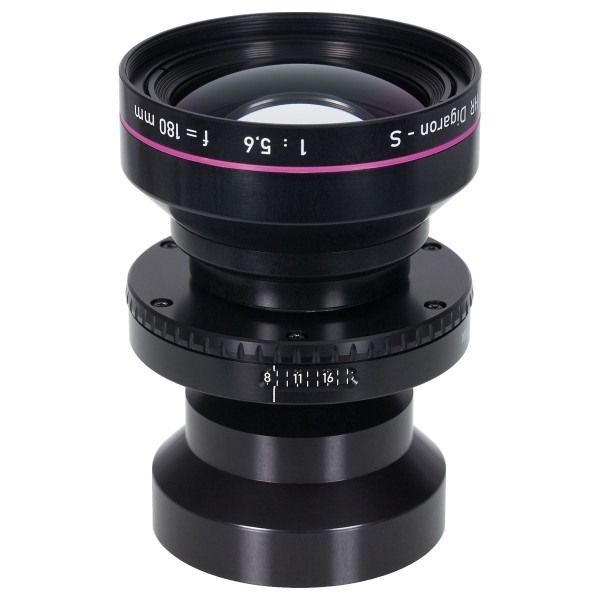

The WRA-2180L Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5,6/180 HR-S Digaron lens with Aperture Only mounted in a helical focussing mount, with 25mm travel.

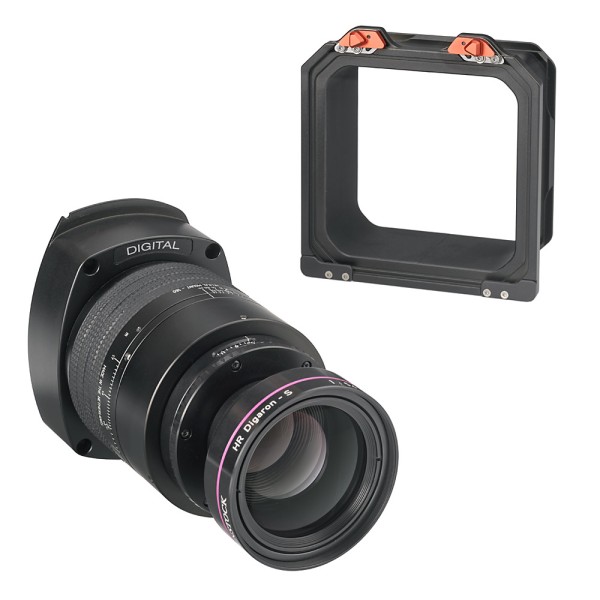

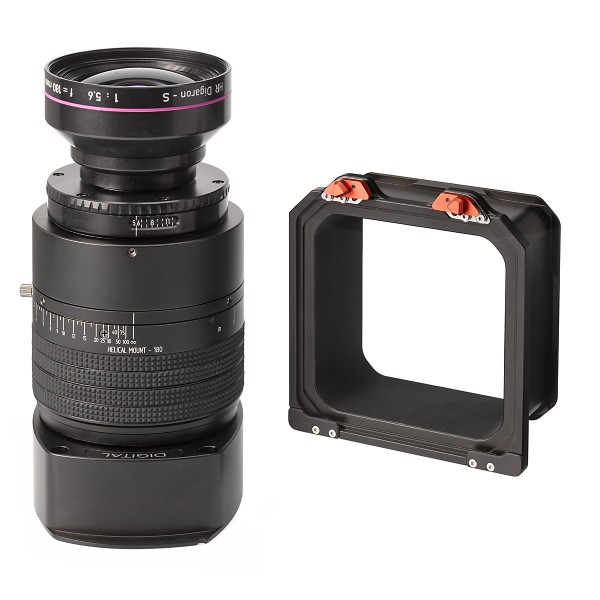

This version has a split back focal length, existing of a shorter lensplate and a rear extension unit (48mm).
This combination allows for more shift before vignetting from the lensbarrel.
The WRA-2180L fits to all Cambo Wide cameras with SLW-adapters.
Product details
| Shortest focus distance to object | 1.7 mtr |
|---|---|
| Image circle of lens at f/11 | 80 mm |
This product is compatible with the PhaseOne XT system / No data transfer
Optical Movements
| CCD Size | Movements |
|---|---|
| 37x37mm | 17/17mm |
| 33x44mm | 17/14mm |
| 36x48mm | 14/12mm |
| 37x49mm | 13/11mm |
| 40x54mm | 9/8mm |
| 36x56mm | 13/7mm |
Please note that some optical movements are larger than achievable due to mechanical limitation.
Camera Movements
| Camera | Movements Up / Down / Left / Right |
|---|---|
| WDS | 34 / 26 / 20 / 20mm |
| WRS | 25 / 15 / 20 / 20mm |
| 1600 | 20 / 20 / 20 / 20mm |
This 180HR Digaron-S is also available on a Tilt/Swing Lenspanel version, see WTSA-180L
