WRA-2090
Lenspanel with HR Digaron-SW 90mm Lens
WRA-2090
Lenspanel with HR Digaron-SW 90mm Lens

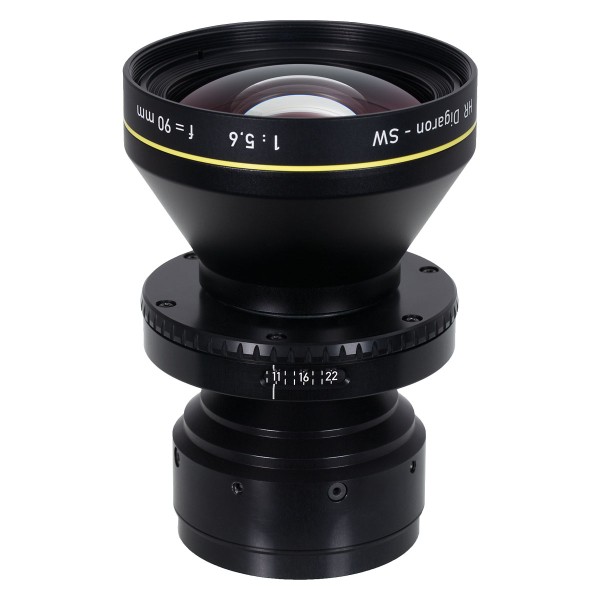

The WRA-2090 Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5.6/90 HR Digaron-SW lens with Aperture Only mounted in a helical focussing mount.

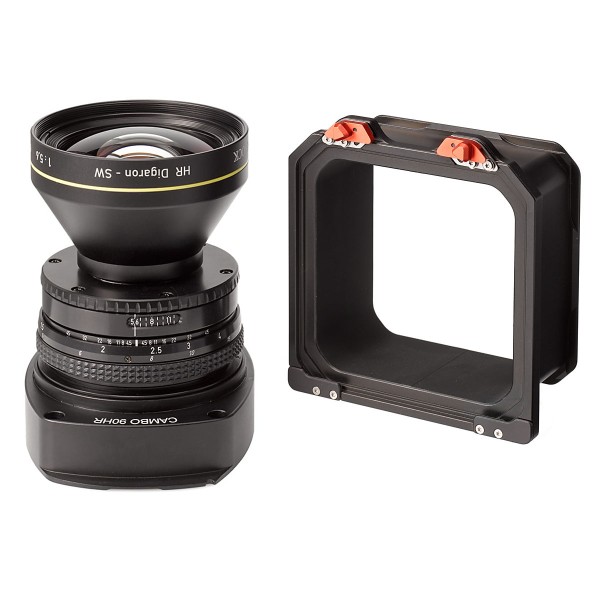

This version has a split back focal length, existing of a shorter lensplate and a rear extension unit.
This combination allows for optimised shift without vignetting from the lensbarrel.
The WRA-2090 fits to all Cambo Wide cameras with SLW-adapters.
Product details
| Shortest focus distance to object | 1.25 mtr |
|---|---|
| Image circle of lens at f/11 | 120mm |
This product is compatible with the PhaseOne XT system / No data transfer
Optical Movements
| CCD Size | Movements |
|---|---|
| 37x37mm | 38/38mm |
| 33x44mm | 39/35mm |
| 36x48mm | 37/33mm |
| 37x49mm | 36/32mm |
| 40x54mm | 33/29mm |
| 36x56mm | 35/29mm |
Please note that some optical movements are larger than achievable due to mechanical limitation.
Camera Movements
| Camera | Movements Up / Down / Left / Right |
|---|---|
| WDS | 34 / 26 / 20 / 20mm |
| WRS | 25 / 15 / 20 / 20mm |
| 1600 | 20 / 20 / 20 / 20mm |
This 90HR Digaron-SW is also available on a Tilt/Swing Lenspanel version, see WTSA-890
