Maximum Versatility. The Actus-MV is a fully adjustable view camera that is still compact enough to be your companion for use in the field. It works equally well with digital backs, mirrorless camera bodies and DSLRs. No matter how your photography develops, the Actus-MV is ready for it and will evolve alongside camera and digital back technology.

Actus-MV (base) A solid foundation in which all camera movements are integrated. To facilitate packing, front and rear standard can be separated from the optical bench without requiring tools.

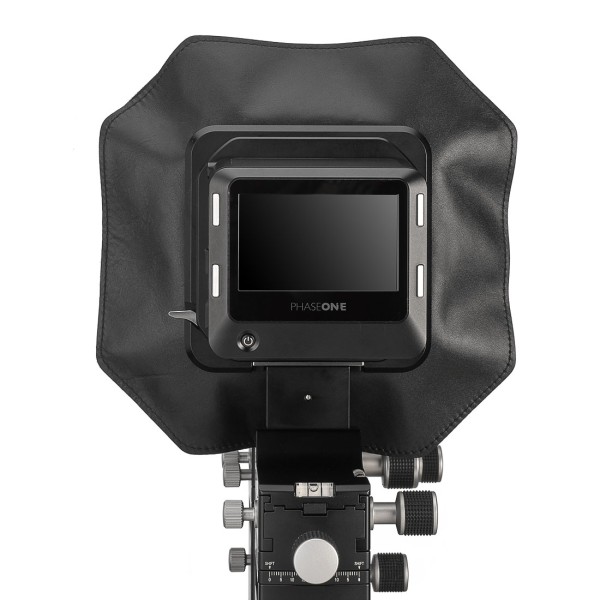

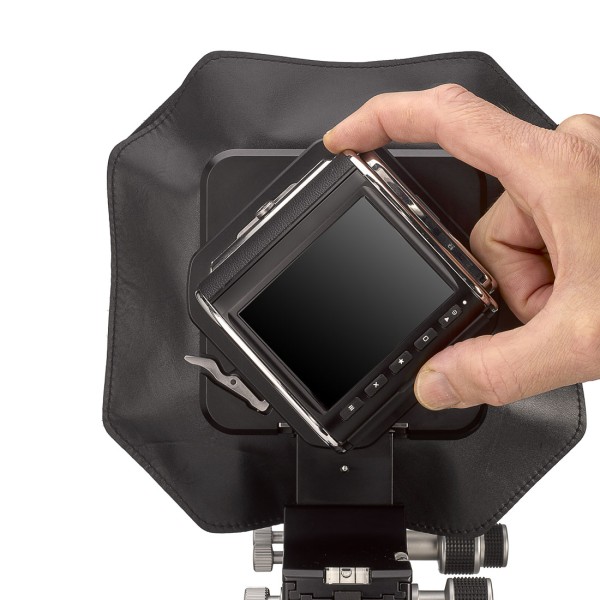

The rear standard can be completed with a choice of adapters for virtually every digital back available. To enable the use of a camera body as your digital back, Cambo offer bayonets for most DSLR and Mirrorless cameras on the market.

At the front standard the Actus-MV accepts all lens plates from the vast Actus range. Including medium format adapters, lens plates for X-Shutter lenses and (legacy) leaf shutter lenses. Furthermore, Cambo offers the steadily expanding range of Actar lenses.

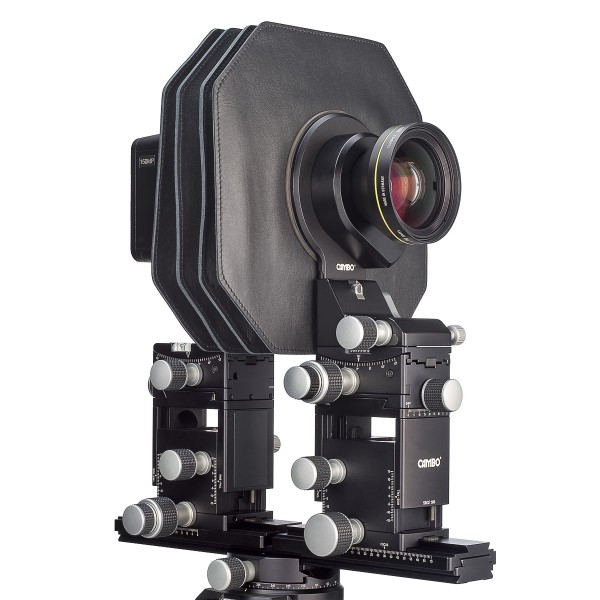

Cambo ACTUS-MV shown with optional lenses and optional digital back.


Product details

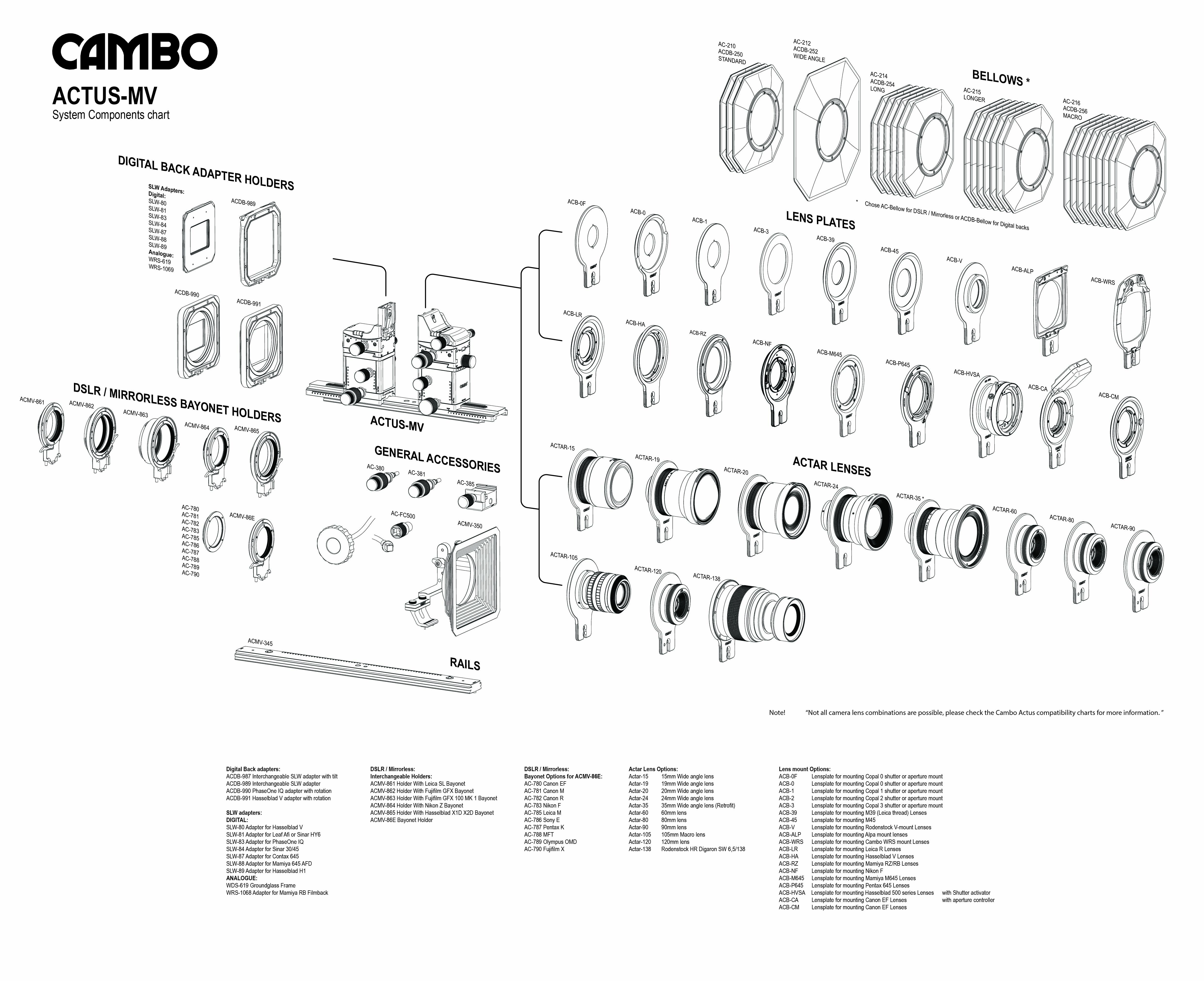

The base configuration of a Cambo ACTUS-MV consists of a monorail, front assembly without lensplate, a rear frame which can accept a camera bayonet holder or digital back frame. Bellows can be added depending on the application.

MovementsGeared
Front standard tilt15°/15°
Front standard swing30°/30°
Rear standard tilt15°/15°
Front and Rear Standard Horizontal shift20mm/20mm
Rear Standard Rise/Fall 15mm/15mm
Front Standard Rise/Fall 15mm/15mm
Weight CompensationOn Rise/Fall (front & rear)

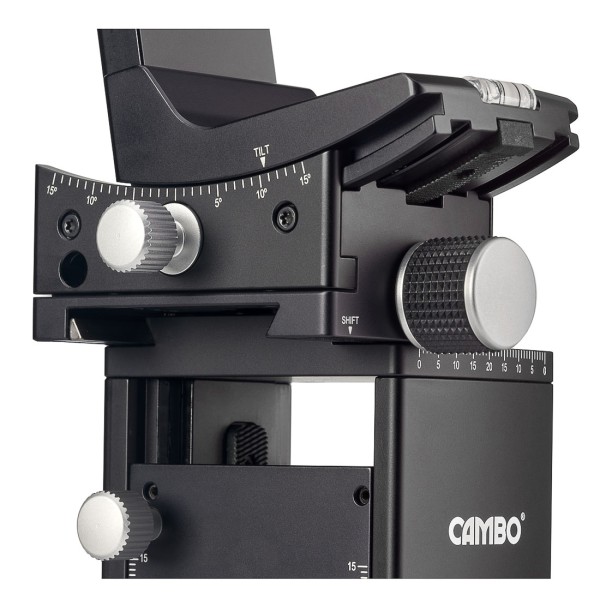

Friction knobsOn camera movements
Fine FocussingDual ratio gear

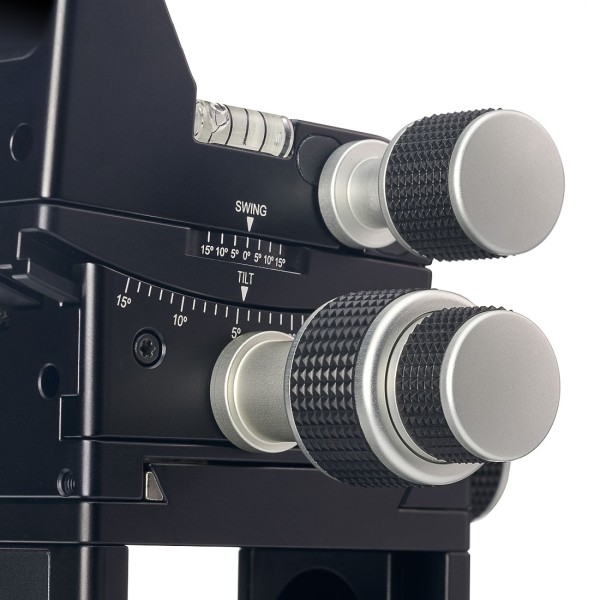

Dual Ratio GearsFor Tilt and Focus
Max. extension (standard rail and bellows)298mm (2x 70mm geared / 158mm telescopic)
Dimensions20 x 12 x 28cm (w/o rail and with DB frame)
Weight2.8 Kg

Kits

Actus-MV is also available in pre-assembled kits for popular digital cameras and digital backs.
