Actar-105 HR-Macro

Actar-105 HR-Macro

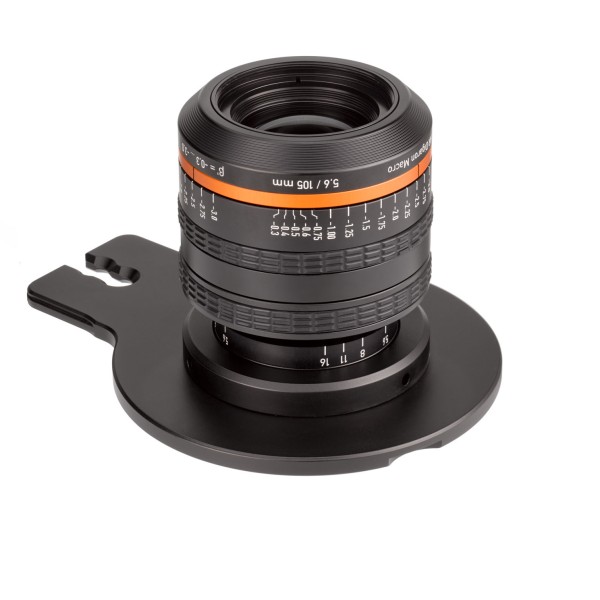

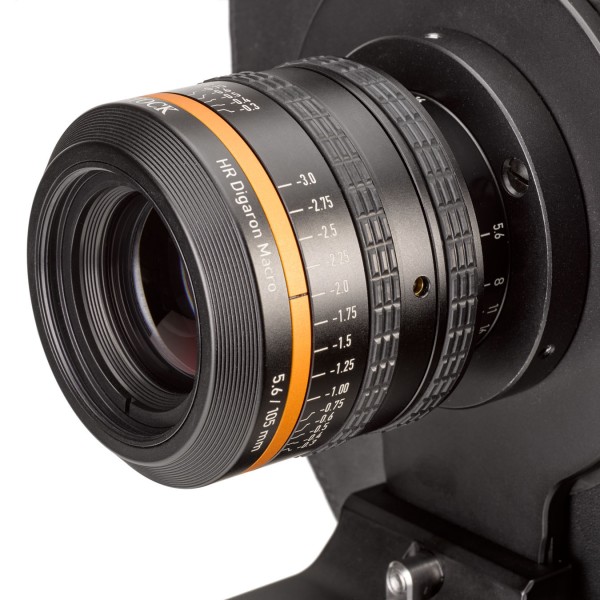

The ACTAR-105 is a lens dedicated to the Cambo Actus in combination with any DSLR or mirrorless camera, mounted to the Actus. This lens is permanently attached to an Actus lens panel and has a focal length of 105 mm. This makes it an ideal companion for dedicated studio and primairily macro photography.

Cambo’s ACTAR-105 is based on the Rodenstock HR-Macro lens with a focal length of 105mm, dedicated to the Cambo Actus series. It is optimised for maginifications between 1:4 and 4:1, with a floating element for the best performance at the set magnification.

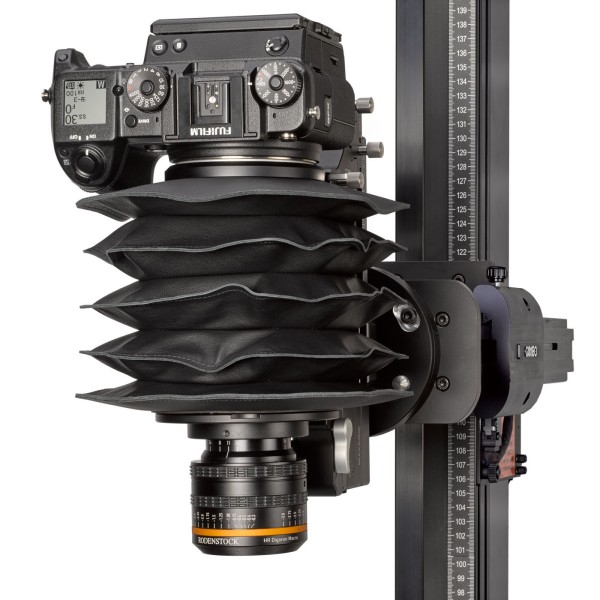

It can be used on the Actus in combination with mirrorless and DSLR camera bodies, as the lens has no shutter.

The design of this lens is build of 8 elements in 4 groups.

Please note that the aperture is manual and there are no electronical connections available nor needed.


 Focal length

105mm

 Aperture range

f 5,6 - 16  (manual)

 Lens construction

8 elements/ 4 groups - 1 floating group

 Coating

multi coating

 Front filter thread

m43 x 0.75

 Size L x W x H

75 x 98 x 130 (includes Actus mount)

 Weight

548 gram

 Image circle

82 mm

 Build for

Cambo Actus (non DB)

 Works in combination   with Actus for

Canon, Nikon, Canon M, Sony A7, Fuji X, Panasonic, Leica M, Olympus OMD/ OM-System, Fuji GFX

 Available since

November 2017
