ACMV-GFX
ACMV-GFX

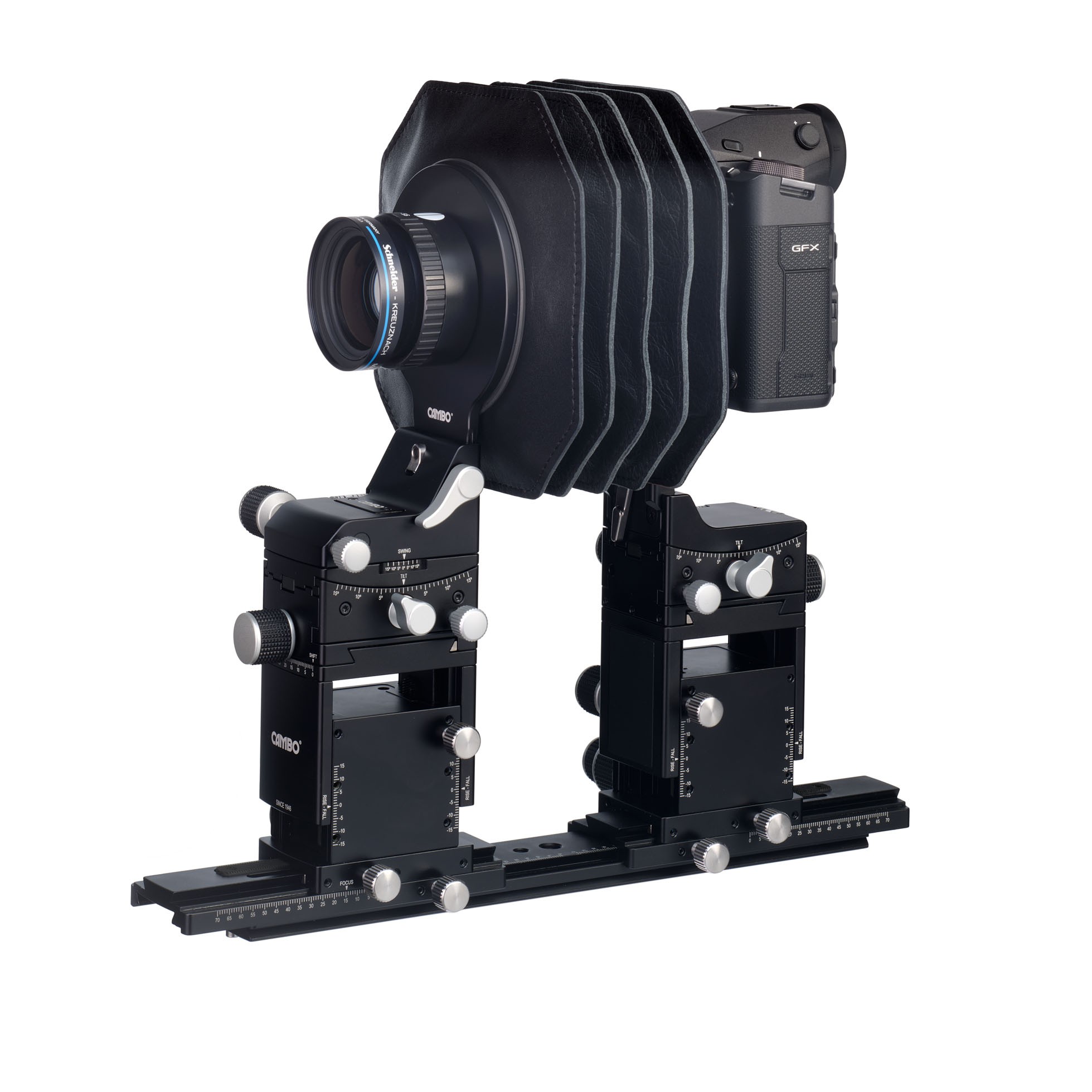

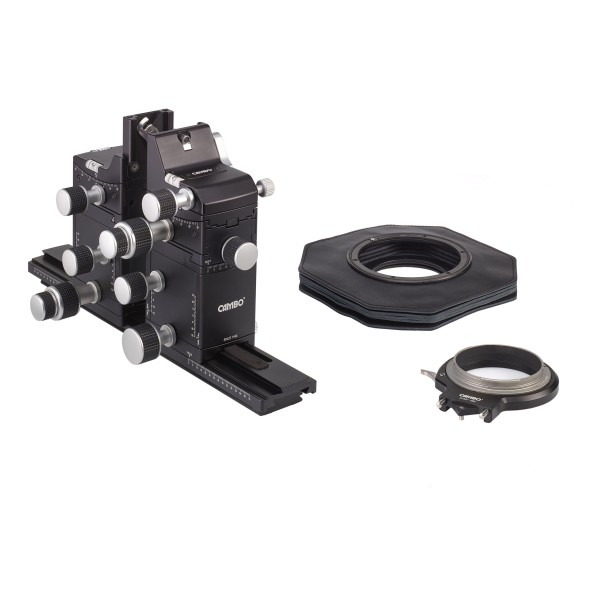

The Actus-MV base completed with adapter ACMV-862 and bellows AC-214. ACMV-862 enables the use of Fujifilm GFX-50 and GFX-100s camera bodies and features integrated rotation from landscape to portrait.
Product details

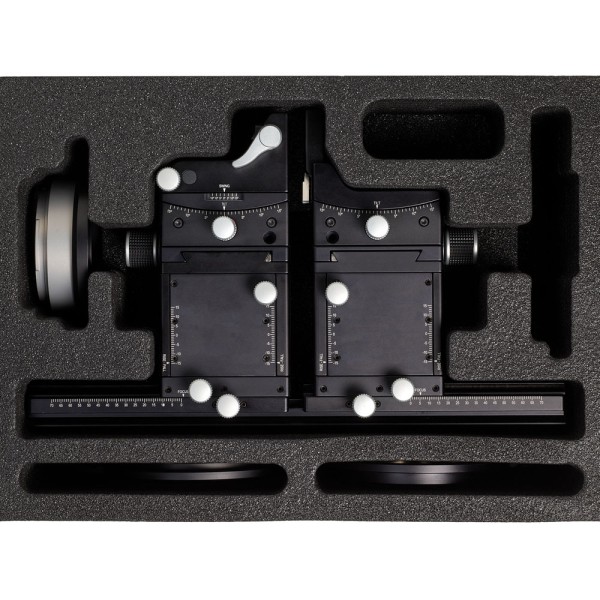

| Content of the Kit |
|
Note: The larger GFX-100 body requires the ACMV-863 bayonet mount, part of the ACMV-F100 kit.
Lenses and Lensplates
Lenses are optional and not part of this kit. Cambo provides its own assortiment of Lenses that are compatible with the Cambo-Actus systems. Furthermore, lensplates to mount third party lenses are available in a wide variety.
Technical details
| Tilt front and rear | 15º / 15º |
| Swing (front) | 30º / 30º |
| Rise/Fall (front and rear) | 15mm/15mm |
| Side Shift (front and rear) | 20mm/20mm |
| Weight | 2,8 kg |
| Max. extension (standard rail and bellows) | 298mm (2x 70mm geared / 158mm telescopic) |
| Dimensions LxWxH | 20 x 12 x 28cm (w/o rail and with DB frame) |
Please note:
- Max. extension is measured from lens mount to bayonet mount.
- The distance from Bayonet to Sensor is different for each camera model series and can be added to the max. extension
Recommendation
A view camera deserves a stable foundation. Please have a look at our range of Studio Stands. The best investment to your studio ever!
