ACMV-DC
ACMV-DC

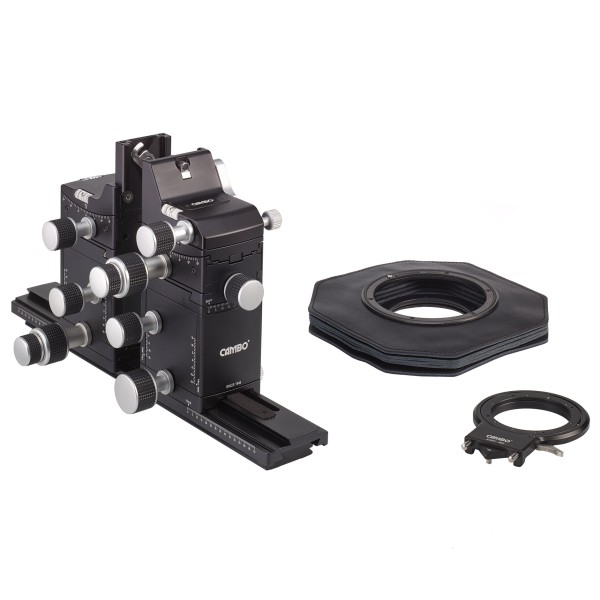

The Actus-MV base completed with the universal bayonet adapter ACMV-86E and bellows AC-214. ACMV-86E accepts a vast range of bayonets for mirrorless and DSLR cameras and features integrated rotation from landscape to portrait.
You will have to add your bayonet of choice for the applicable camerabody.
Product details

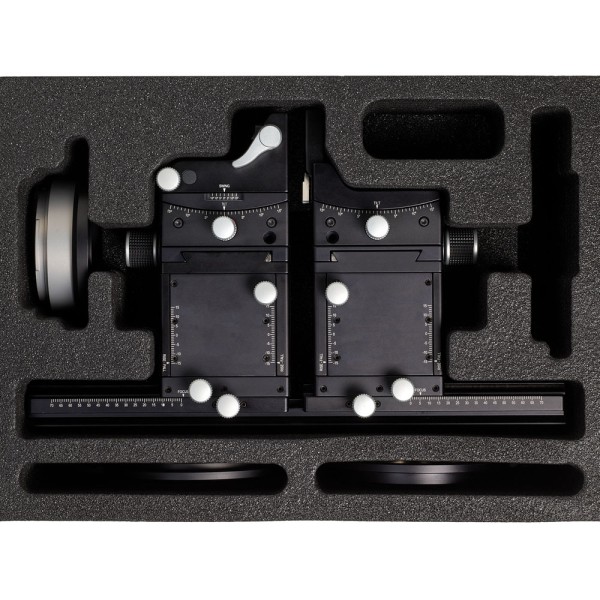

| Content of the Kit |
|
Note: Lenses are optional and not part of this kit. Find here additional Lenses and lensplates
Compatible Bayonets
A bayonet should be added to work with the camerabody of your choice
Bayonets that are compatible with the ACMV-86E are:
- AC-780 for Canon Eos DSLR
- AC-781 for Canon-M series
- AC-782 for Canon-R series
- AC-783 for Nikon-F mount
- AC-785 for Leica-M mount
- AC-786 for Sony-E mount series
- AC-787 for Pentax-K mount
- AC-788 for Micro FourThird series
- AC-789 for Olympus OMD bodies
- AC-790 for Fujifilm X-mount bodies
Lenses and Lensplates
Cambo provides its own assortiment of Lenses that are compatible wit the Cambo-Actus systems. Furthermore, lensplates to mount third party lenses are available in a wide variety.
Technical details
| Tilt front and rear | 15º / 15º |
| Swing (front) | 30º / 30º |
| Rise/Fall (front and rear) | 15mm/15mm |
| Side Shift (front and rear) | 20mm/20mm |
| Weight | 2,8 kg |
| Max. extension (standard rail and bellows) | 298mm (2x 70mm geared / 158mm telescopic) |
| Dimensions LxWxH | 20 x 12 x 28cm (w/o rail and with DB frame) |
Please note:
- Max. extension is measured from lens mount to bayonet mount.
- The distance from Bayonet to Sensor is different for each camera model series and can be added to the max. extension
