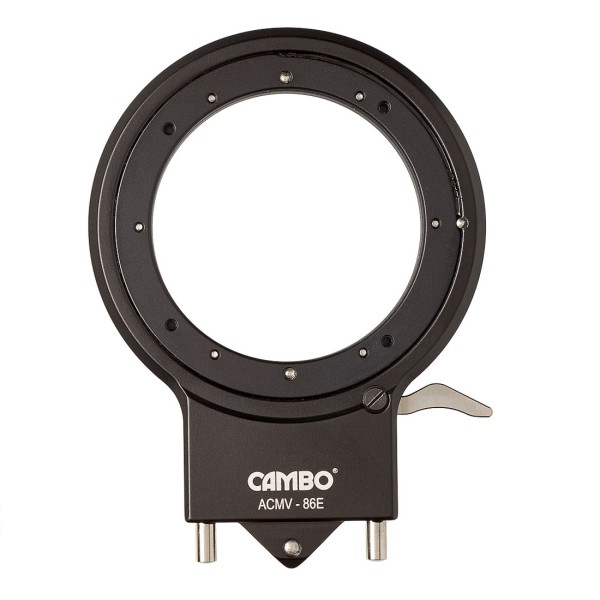

ACMV-86E

Actus-MV Bayonet Holder

ACMV-86E

Actus-MV Bayonet Holder

This ACMV-86E Bayonet Holder is an optional accessory for the ACTUS-MV and allows the mounting of bayonets for various mirrorless and DSLR camera bodies to the interchangeable top part of the rear standard of the ACTUS-MV.

This adapter includes a built-in rotation between landscape and portrait position.

Product details

This ACMV-86E Bayonet Holder is an optional accessory for the ACTUS-MV series and allows the mounting to the interchangeable top part of the rear standard of the ACTUS-MV base. A bayonet is needed to complete the product for mounting the requested Mirrorless or DSLR camera body.

This adapter includes a built-in rotation between landscape and portrait position.

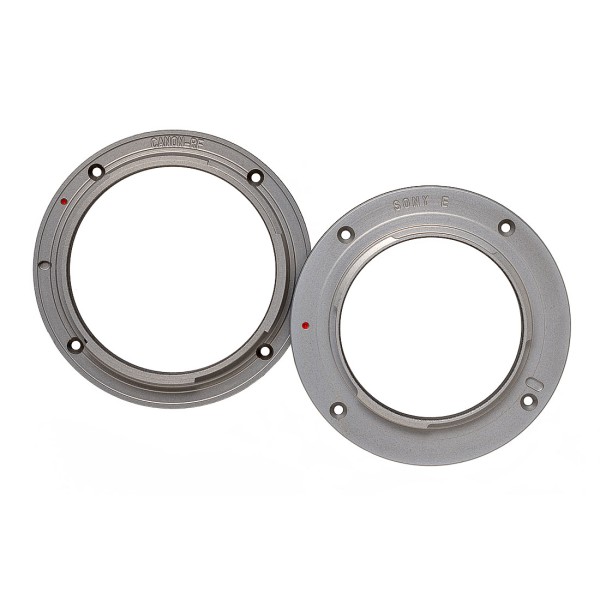

Bayonets from the AC-780 to AC-790 series can be mounted with 4 screws to this part, in order to switch cameras within seconds on the ACTUS-MV

Mounting of an additional bayonet is required:

AC-780
AC-781
AC-782
AC-783
AC-785

AC-786
AC-787
AC-788
AC-789
AC-790

Go to Bayonets

Note: this adapter is already intergrated in the ACMV-DC Kit

Technical details

Bayonet options	AC-780 for Canon EOS-mount AC-781 for Canon M-mount AC-783 for Nikon F-mount AC-785 for Leica M-mount AC-786 for Sony E-mount AC-787 for Pentax K-mount AC-788 for Micro Four Third mount AC-789 for Olymous OMD mount AC-790 for Fujifilm X-mount
Internal rotation	90 degrees between Landscape and Portrait
Available colours	Black Anodised
