ACMV-863
Bayonetholder for Actus MV with Fuji GFX-100
ACMV-863
Bayonetholder for Actus MV with Fuji GFX-100

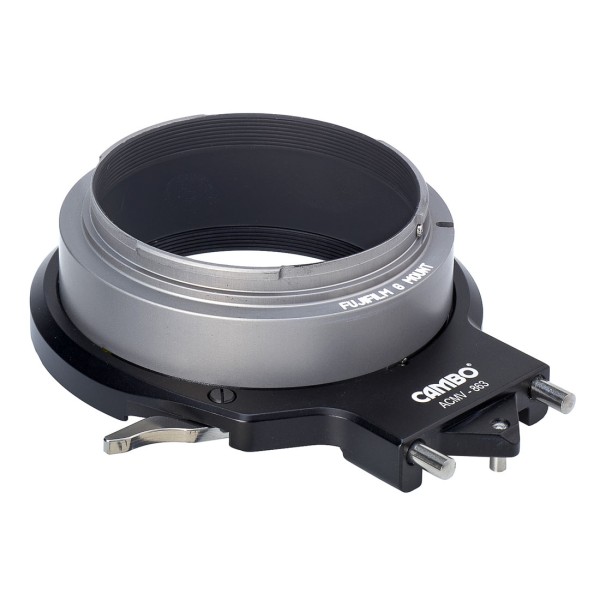

The ACMV-863 Bayonet Holder enables mounting of the larger FUJIFILM GFX-100 camera body to the rear standard of the ACTUS-MV base.
This adapter includes a built-in rotation between landscape and portrait position.
The increased size of the GFX-100 compared to the GFX-50/GFX-100s bodies requires a bit more space between bayonet and camera body in order to rotate freely.
NOTE: the more compact GFX-100S body fits perfectly onto ACMV-862. Its shorter flange makes it the preferred choice.
Product details
The bayonet holder with the Fujifilm GFX-100 bayonet is placed on longer distance from the optics to allow room for the increased body dimensions of the GFX-100 body.
Because of that there may be limitations with some optics. The Actar-60 is known not to focus at infinity anymore with this particular interface kit.
Alternatively the GFX-100 can be mounted to the existing ACMV-862 kit unchanged, although only in portrait mode without rotation to landscape.
Note: this adapter is already intergrated in the ACMV-F100 Kit
Technical details
| Bayonet | Fujifilm GFX |
|---|---|
| Internal rotation | 90 degrees between Landscape and Portrait |
| Additional Distance for Bayonet | Optimised for use with the larger Fujifilm GFX100 |
