Actus-G

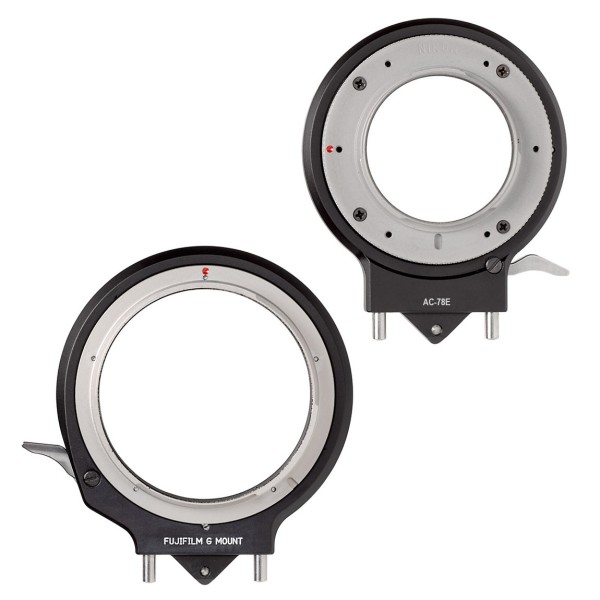

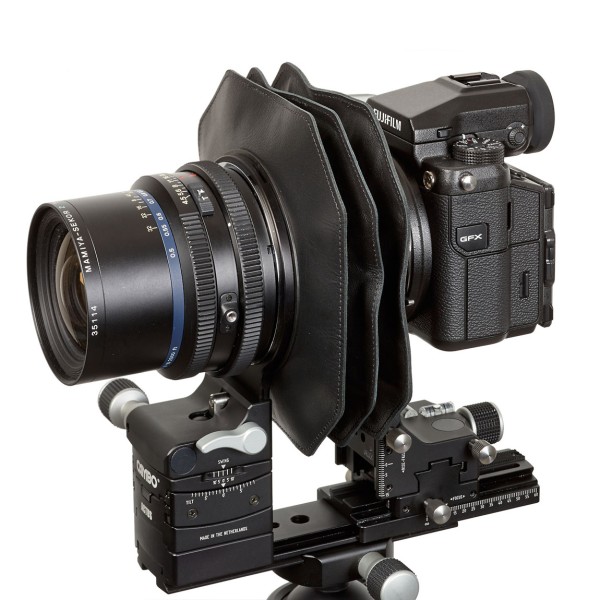

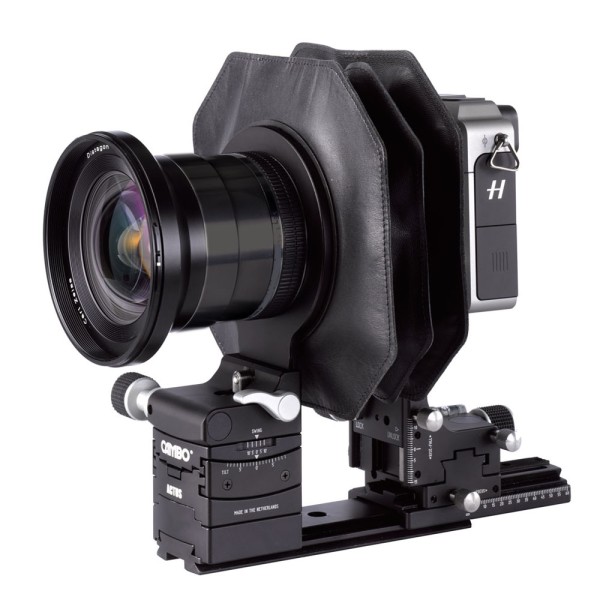

The Cambo Actus-G is a refined version of the Actus-B. Its distinctions over the latter are fine gearing on the horizontal shift and a detachable bayonet holder. The redesigned rear standard is suitable for use with larger sensor Mirrorless Cameras like the Fujifilm GFX 50/100 and Hasselblad X1D/X2D.The Nikon Mirrorless Z and Leica SL system also require this detachable bayonet holder. Virtually every other camera system is supported by the AC-78e interchangeable bayonet holder. There’s even a frame for Digital Backs.

Adding view camera capabilities like rise/fall, shift, tilt and swing to the camera body will increase your creative abilities. Control over the plane of focus enhances efficiency and quality of photo studio work. Thanks to the Actus’ small form factor and light weight it is also the ideal companion for landscape and architecture photographers.

Enhance your creativity, get more out of your camera system

  • View camera movement for selective sharpness
  • Rear Shift movement to stitch a wider angle of view and/or larger files
  • Horizontal shift at the rear standard is geared
  • Front standard offers geared tilt/swing both on-axis
  • Rotation Landscape/portrait built-in - no need to work with an angled camera
  • Great tool for macro work
  • Expandable with various rails and bellows
  • Use of various lens designs, including many legacy lenses
  •  Zero clicks on all movements

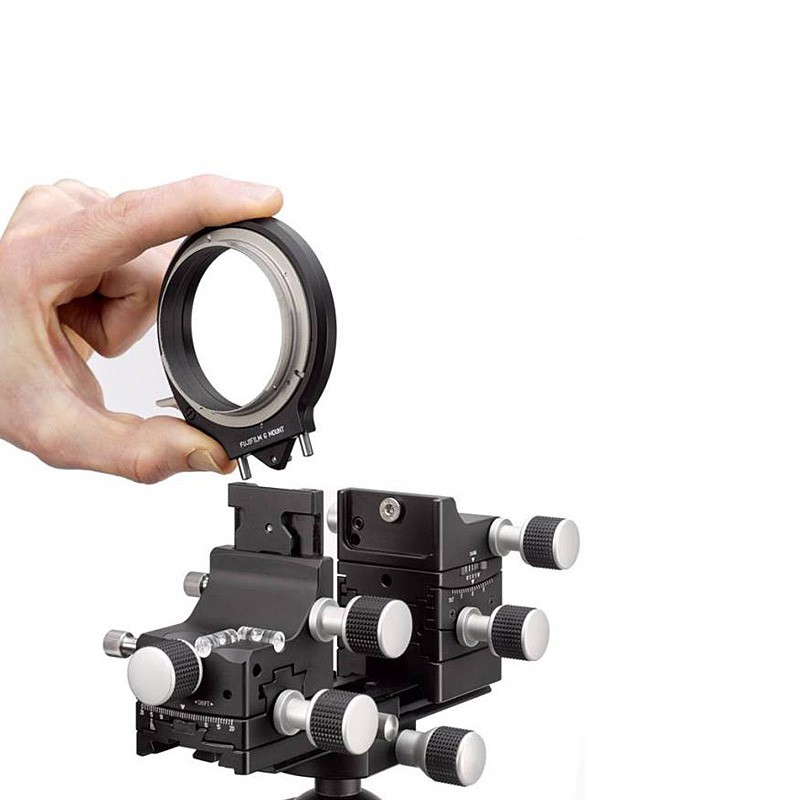

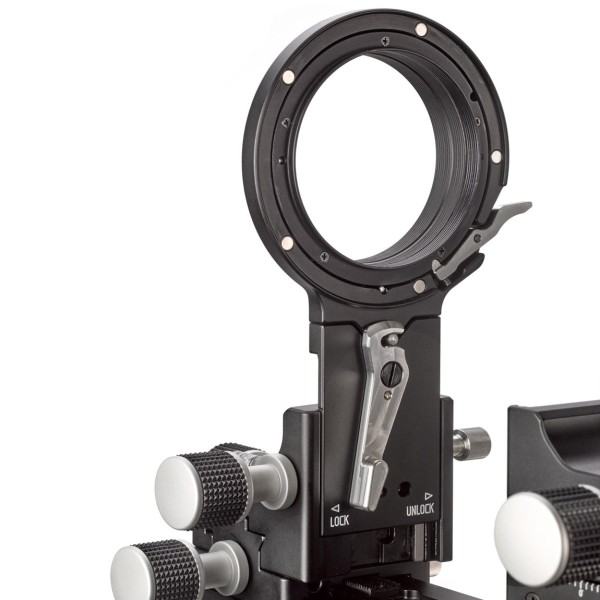

  • Detachable bayonet/digital back holder
  • Bayonet are available for virtually any Mirrorless and DSLR system on the market

The basic configuration of a Cambo ACTUS-G consists of a monorail, front assembly without lensplate, a rear frame which can accept a camera bayonet holder and a detachable standard bellows which is part of the ACTUS configuration.

Technical Details
Dimensions LxWxH152 x 115 x 171 mm
Weight1150 grams
Front Swing360 degrees
Front Tilt 19 degrees (+10/-9)
Rear Shift Vertical27 mm (12/15)
Rear Shift Horizontal40 mm (20/20)
Focus Travel up to 134mm (-GFX-sensor)
Available coloursBlack anodised



Lensplate options
  • Cambo ACTAR lens series
  • Copal 0 and 1 (#3 on request)
  • Hasselblad C Bayonet
  • M39 Leica thread
  • Mamiya 645 ProTL bayonet
  • Mamiya RZ/RB bayonet
  • Pentax 645 bayonet (for mirror less bodies only)

Go to Lenses and Lensplates
