Actus-DB2
Actus-DB2

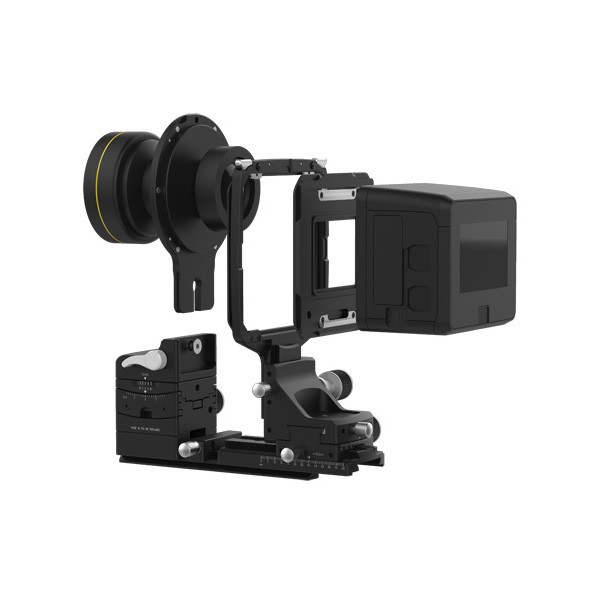

The Cambo ACTUS-DB2 is an evolution of the ACTUS-Mini series for mirrorless cameras and DSLR's. It's the version for use with Digital Backs. Thanks to a plethora of adapters it accepts modern CMOS backs, like Hasselblad CFV-100 and Phase One IQ4, just as well as most legacy backs.
It shares many parts with the ACTUS, thus minimising size and weight. Although sensors used in digital backs are considerably larger than those in mirrorless and slr cameras, the height of the ACTUS-DB2 is just slightly more.
View camera movements add versatility to your toolkit, increase creativity and enable results that can't be obtained otherwise.
The Cambo ACTUS-DB2 is small and lightweight and fits easily into a small case or bag.
- View camera movements for selective sharpness
- Rear Shift movement to stitch a wider angle of view and/or larger files
- Geared horizontal shift at the rear standard
- Front standard offers geared tilt/swing both on-axis
- Great tool for macro work
- Expandable with various rails and bellows
- Zero clicks on all movements
- Get access to the finest lenses made by Rodenstock and Schneider

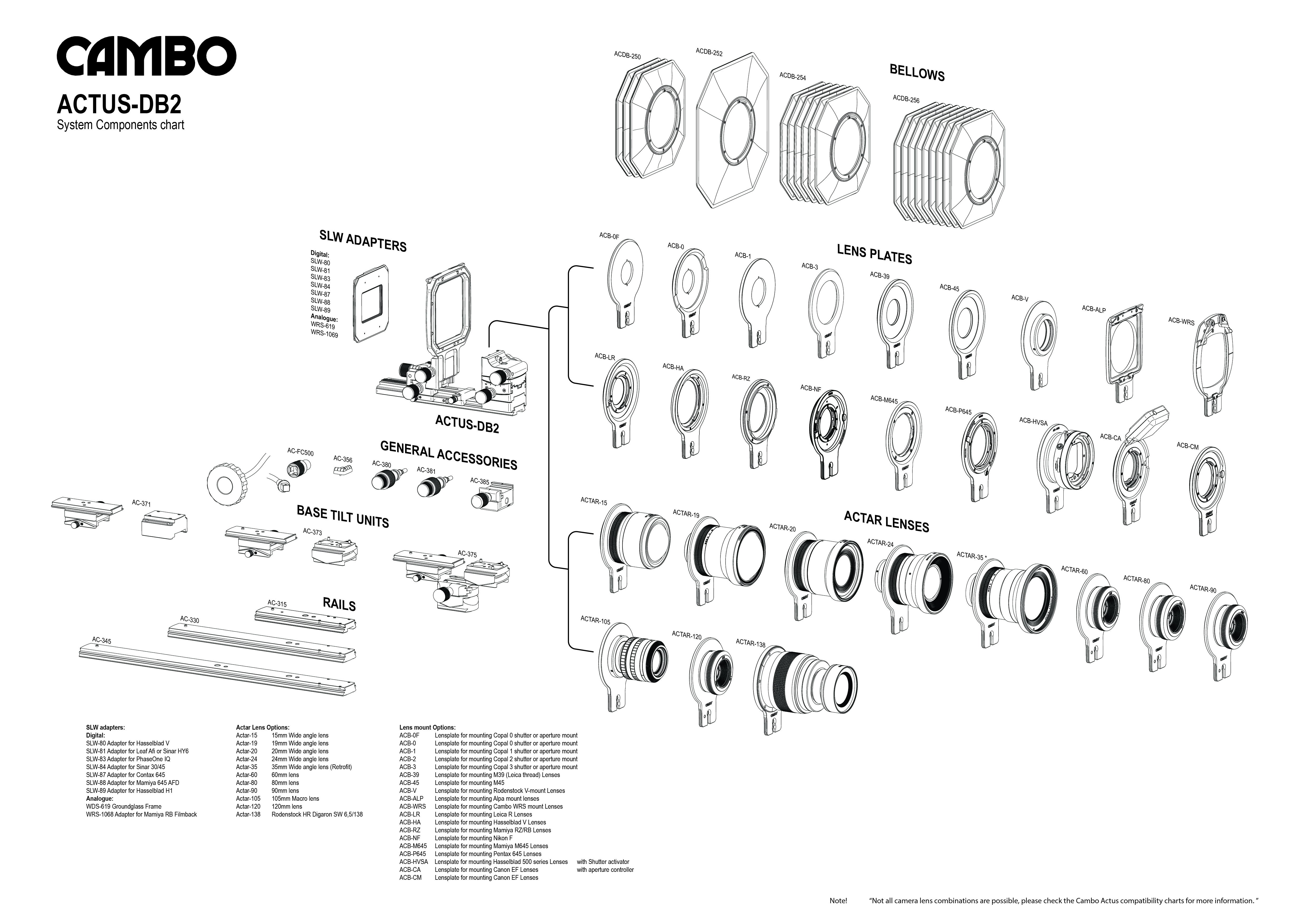

A basic configuration of a Cambo ACTUS-DB2 consists of a 175 mm monorail, front assembly without lensplate and a rear frame with an optional choice of digital back interface. The Actus-DB2 comes with a standard bellows.
Technical details
| Dimensions LxWxH | 180 x 100 x 210mm |
|---|---|
| Weight | 1200 grams |
| Front Swing | 360° |
| Front Tilt | 19° (+10°/-9°) |
| Rear Shift Vertical | 27mm (12/15) |
| Rear Shift Horizontal | 40mm (20/20) |
| Max. Extension |
|
| Colour | Black anodised |
Lensplate options
- Copal 0
- Copal 1 (Copal 3 on request)
- Adapting plate for short barrel Alpa lens panels (short barrel only)
- Adapting plate for short barrel WideRS lens panels (short barrel only)
Interchangeable inserts for digital backs, compatible with:
- Hasselblad-H
- Hasselblad-V
- PhaseOne/Mamiya DF/XF
- Contax
- Leaf Afi/Sinar HY6
