Actar-19
Actar-19

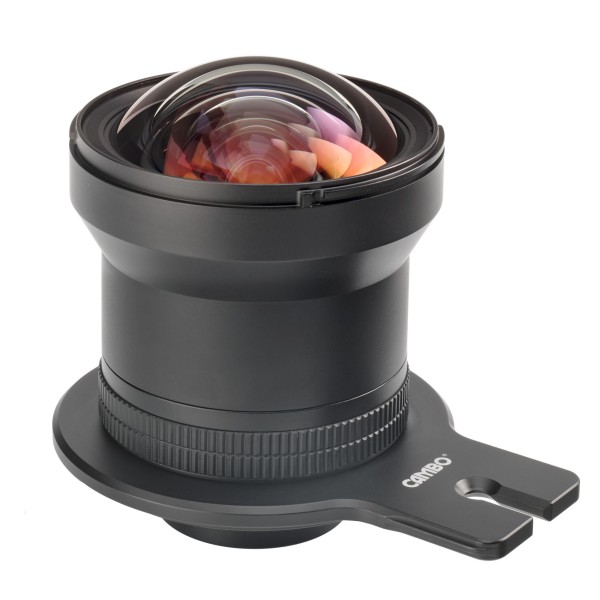

The ACTAR-19 is the Actus' Ultra Wide Angle Lens for Mirrorless and DSLR cameras.This lens is permanently attached to an Actus lens panel and has a focal length of 19mm. Thanks to its relatively light weight and modest size it is easy to carry to location shootings, making it an ideal companion for interior, landscape and architectural photographers.
The ACTAR-19 has very little geometrical distortion. The 71mm image circle enables horizontal shift of 15mm to each side when using a full frame (24x36) sensor in landscape and 18mm in portrait mode. Combined with the larger (33x44) sensor in Fujifilm GFX 50/100 and Hasselblad X2D cameras the Actar-19 still offers at least 9mm of shift.The image circle generously covers the 54x41 mm sensor of modern digital backs and can be used with the On-Sensor shutter in Phase One and Hasselblad backs.
The optical design is a 17 element in 13 groups, including elements with Nano Crystal Coat. The aperture ranges from f/4 to f/32 in half stop increments. Please note that the aperture is manual and there are no electronical connections available nor needed.
Product details
- First building image is made with Actar-19 on an Actus-G with Sony A7IV showing 13 mm Rise.
- Second building image is made with Actar-19 on an Actus-G with Fujifilm GFX50 showing 12 mm Rise. Here the upper corners are just starting to vignette.
For more information about the lens also this Cambo Blog page about the actar-19. Furthermore, the AC-324 compendium is a frequently used companion of this lens. Read more about it in this blog.
Technical details
| Focal Length | 19mm |
|---|---|
| Aperture range | f 4,0 - 32 (manual) |
| Lens construction | 17 elements/ 13 groups |
| Coating | Multi coating including Nano Crystal Coat |
| Image circle | 71mm |
| Front filter thread | No filter possibility - The AC-324 compendium can be clampled on as adjustable sunshood |
| Size LxWxH | 121x102x132mm (including lenscover) |
| Weight | 880gram |
| Build for | Cambo Actus |
| Work in combination with actus (or actus MV) for | Mirrorless Camera body, Canon DSLR, DB+ES |
| Available since | February 2021 |
