Actus-GFX
Actus-GFX
The Cambo ACTUS-G is a refined version of the Actus-B. Its distinctions over the latter are geared horizontal shift and a detachable bayonet holder. This version of the Actus is fit for use with the Fujifilm GFX and Hasselblad X1D/X2D cameras. The Nikon Z and Leica SL mirrorless systems also require the G's new bayonet holder. Bayonets for other cameras can be attached to the interchangeable bayonet holder AC-78e. Virtually every system available is supported. Even digital backs, by adding an interchangeable frame.
The Cambo ACTUS turns your Mirrorless Camera or DSLR into a digital back. View camera movements like rise/fall, shift, tilt and swing add new creative abilities to your photography. Control over the plane of sharpness increases efficiency and quality of your studio work. The small form factor and light weight make the Actus an ideal companion for the architecture and landscape photographer.

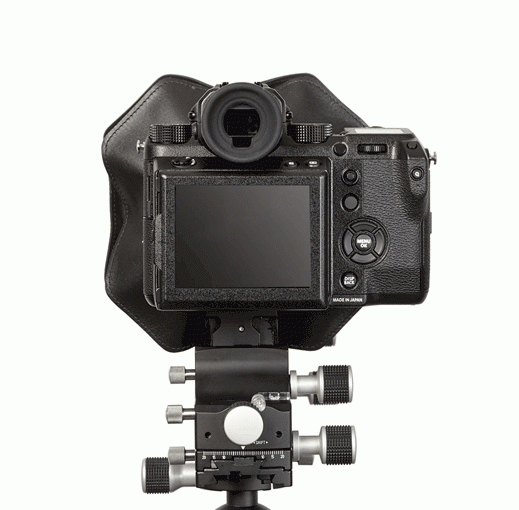

Note: Cambo ACTUS shown with optional lenses and optional camera body.
Read a review about the Actus-GFX with the Fuji GFX50s
The basic configuration of a Cambo ACTUS-GFX consists of a monorail, front assembly without lensplate, a rear frame with GFX camera bayonet and a detachable standard bellows which is part of the ACTUS configuration.
Technical details
| Dimensions LxWxH | 152 x 115 x 171 mm |
| Weight | 1150 grams |
| Front Swing | 360 degrees |
| Front Tilt | 19 degrees (+10/-9) |
| Rear Shift Vertical | 27 mm (12/15) |
| Rear Shift Horizontal | 40 mm (20/20) |
| Focus Travel | up to 134mm (-GFX-sensor) |
| Available colours | Black anodised |
Lensplate options
- Lensplate options
- Cambo ACTAR lens series
- Copal 0 and 1 (#3 on request)
- Hasselblad C Bayonet
- M39 Leica thread
- Mamiya 645 ProTL bayonet
- Mamiya RZ/RB bayonet
- Pentax 645 bayonet (for mirror less bodies only)

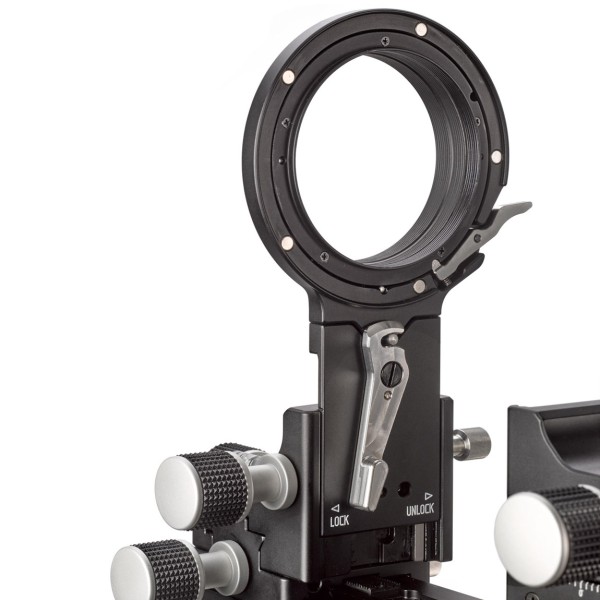

Actus-GFX bayonet
The Actus-GFX Kit comes with the AC-792 for Fuji GFX.
To learn more about this bayonet holder
Click here
