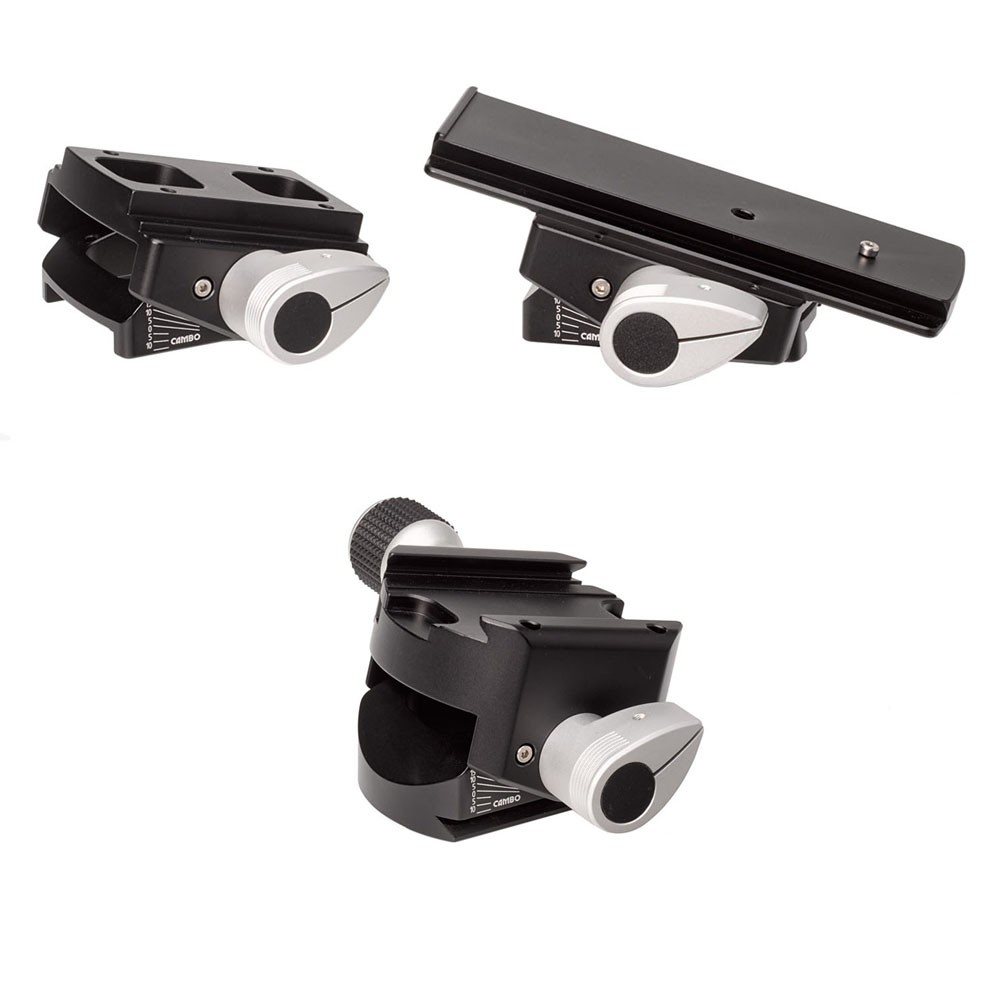

AC-375 adds an extra base tilt adjustment to your Actus camera's front and rear standards, as well as to the Tripod Mount. This kit is a retrofit for all existing ACTUS B, G, and DB versions.

The rear base tilt unit mounts between the rear standard focussing unit and the monorail. It makes an extra layer of sliding focus too, adding 42mm of focus draw to the original configuration.

The front base tilt unit mounts with 4 screws between the front standard and the monorail. The tripod base tilt unit mounts to the bottom of the monorail and can slide along the full monorail length.

Incremental settings upto 15 degrees are set and locked with a positive lock.

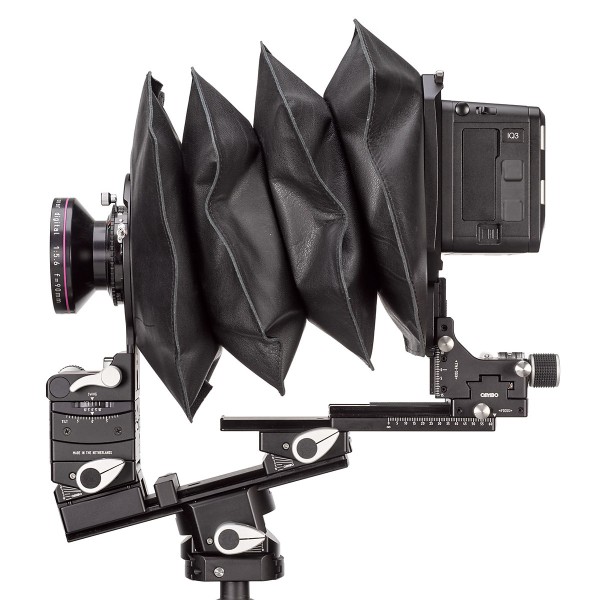

AC-375 gives additional freedom of movements in applying technical camera settings. It also enables the use of indirect vertical movements by applying base tilt to both standard, as an alternative to additonal vertical shift. By simultaneously applying tilt to the tripod mount, you can keep your standards parallel and perpendicular with an inclined monorail. Ideal for yaw-free swing applications.
