AC-371
Rear Base Tilt for Actus
AC-371
Rear Base Tilt for Actus

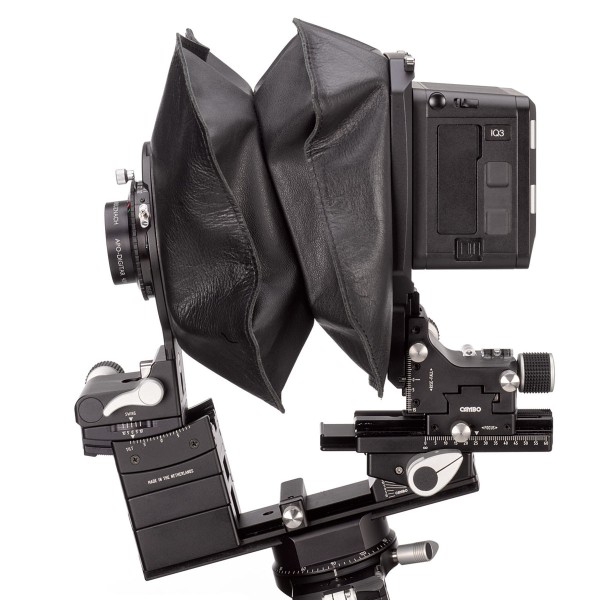

AC-371 adds an extra base tilt adjustment to your Actus camera's rear standard. This kit is a retrofit for all existing ACTUS B, G, and DB versions.

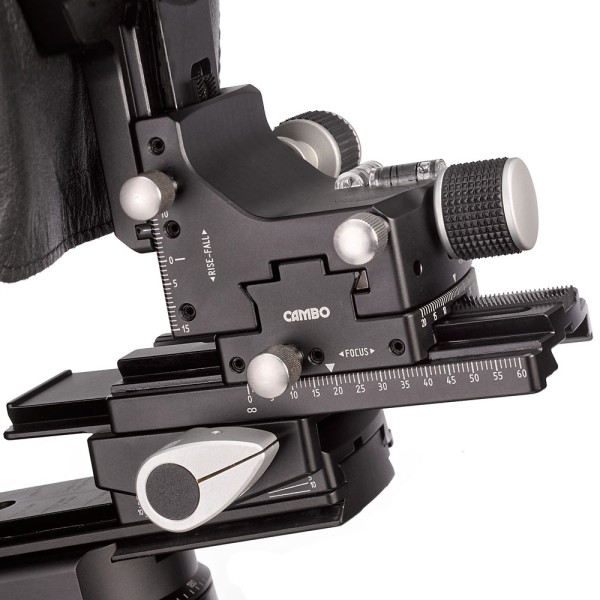

The rear base tilt unit mounts between the rear standard focussing unit and the monorail. It makes an extra layer of sliding focus too, adding 42mm of focus draw to the original configuration.
Incremental settings upto 15 degrees are set and locked with a positive lock.
AC-371 gives you more creativity in applying technical camera movements.
Product details

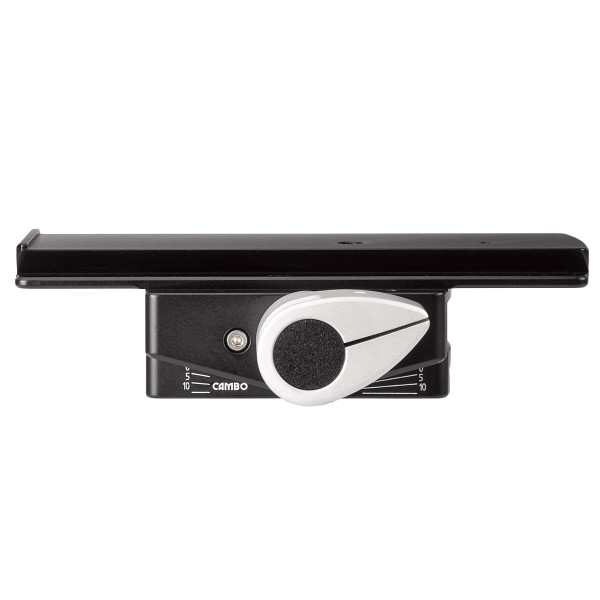

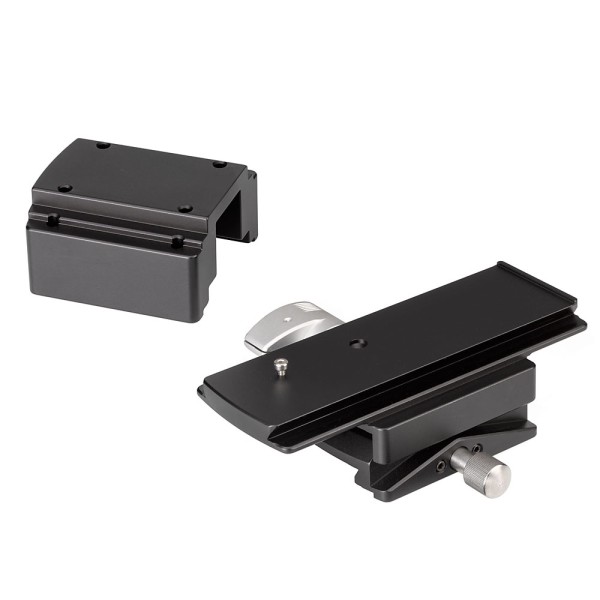

The AC-371 kit consists of a rear base tilt unit and a dedicated spacer under the front assembly to match the correct height change.
The rear base unit can be set each 5 degrees upto 15 degrees to each side. The lock is applied in a grid pattern, so the standard is unmoveable locked into position.
Technical details
| Weight | 0.26 kg |
| Height | 20 mm |
| Additional focusdraw | 42 mm |
| Rear base tilt | +15/-15 degrees |
| Increments | each 5 degrees |
