AC-380
Fine Ratio Focus Gearing
AC-380
Fine Ratio Focus Gearing
The AC-380 is a replacement focus assembly for the Actus camera bodies, with the unique ability to drive the focus movement in normal ratio as well as with a fine ratio of 1:5, allowing very precise focussing in all situations. The extra focus layer knob has a larger diameter for optimum feeling of fine focus.
AC-380 can be added to every Actus-B, -G and -DB version ever delivered, by a simple replacement routine.

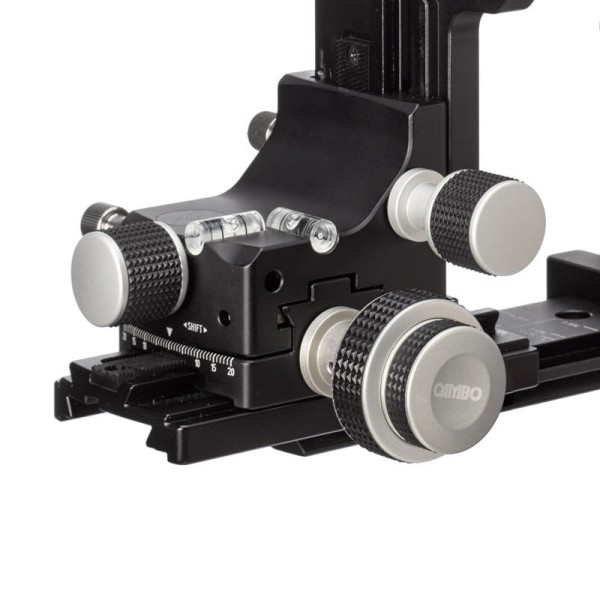

Next to the focus movement, the AC-380 is also suitable to replace the Tilt movement on the front standard of the Actus-B series in the same way.
Product details

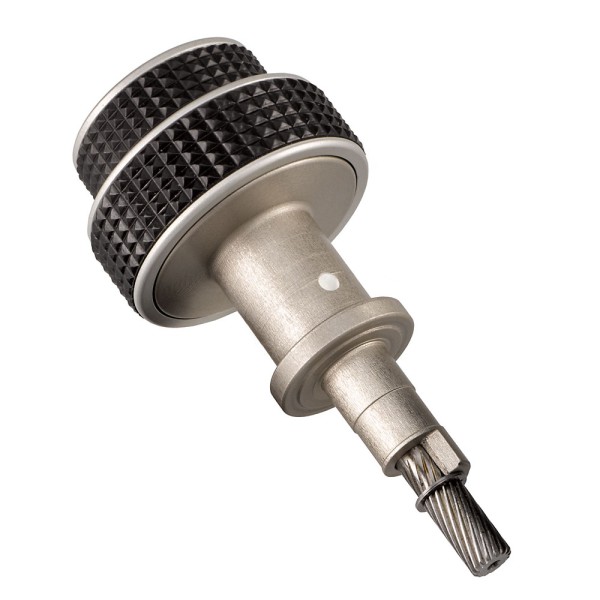

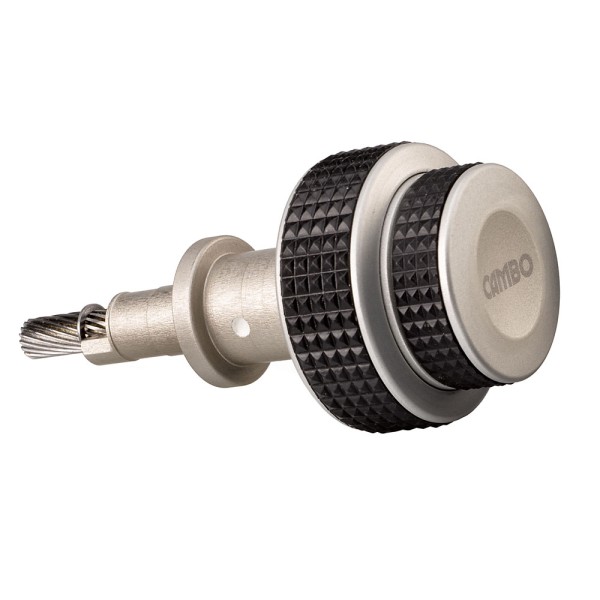

AC-380 consist of an assembly of the drive gear, direct drive knob and a fine ratio knob.
AC-380 is a replacement assembly suitable for the focus of all delivered Actus-B, Actus-G and Actus-DB versions including Actus-GFX, -XCD, and -DB2.
AC-380 can also be used in the same way for replacement of the Tilt knob assembly on the front standard of the Actus-B and early Actus-DB, adding a fine ratio tilt functionality.
The exchange procedure is a straight forward operation, guided by a clear manual.
Technical details
Additonal weight | 26 gram after exchange |
---|---|
additional width | 10 mm after exchange |
direct drive knob diameter | 32 mm |
Fine ration gear knob diameter | 25 mm |
Package includes | drive assembly AC-380, 1 hex key, 1 instruction manual. |
Compatibility on Actus Rear Standards
Actus-B (including B2, B4, B6, B8) |
Actus-DB and Actus-DB2 |
Actus-G (including Actus-GFX, XCD) |
Compatibility on Actus Front Standards
Actus-B (including B2, B4, B6, B8) |
Actus-DB early versions |
AC-381 is required for Actus-G and Actus-DB2 |
