ACDB-987
ACDB-987

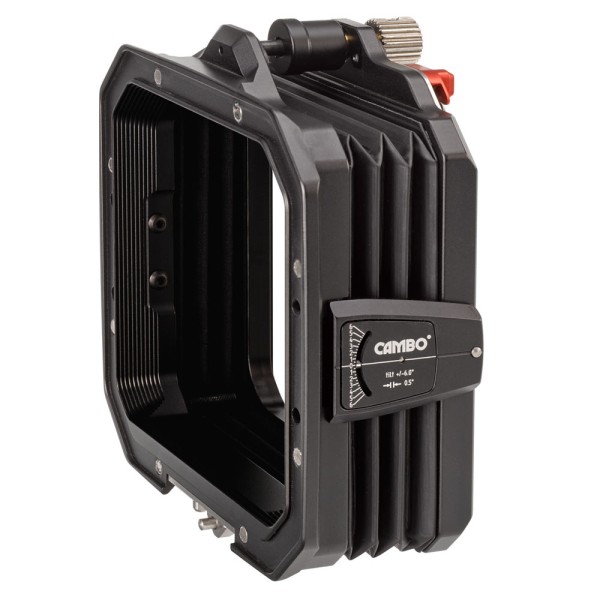

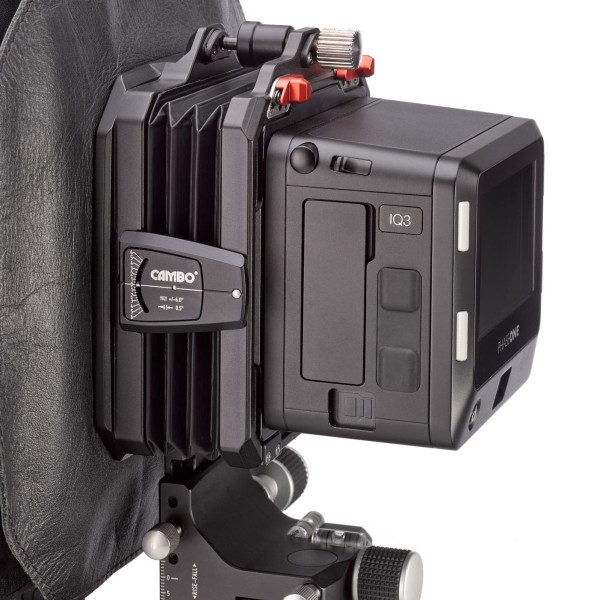

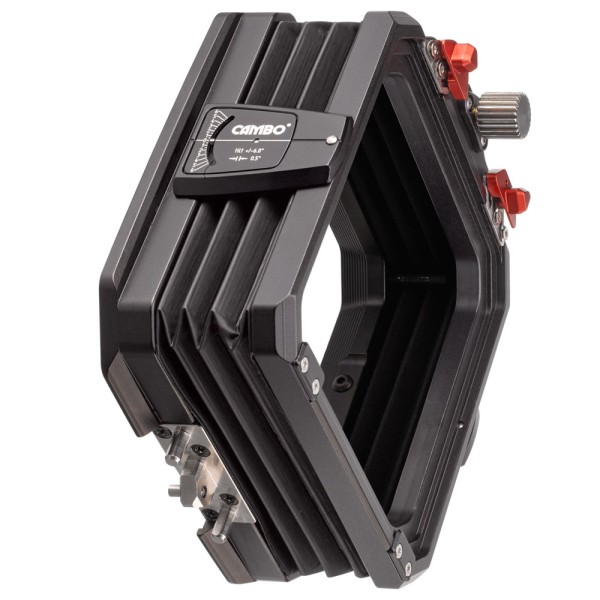

The ACDB-987 is an interchangeable insert that fits on to Actus-G version. It can replace the bayonet holders AC-792, AC-793 and AC-78E and offers the possibility to use a digital back on the Actus-G series. The ACDB-987 adds an extra tilt function to the rear standard. You only have to add a fitting bellows and a SLW-adapter for your digital back.
This way you can easily switch from shooting with your DSLR or Mirrorless camera body to shooting with your digital back.
Compatability
- Actus-GFX
- Actus-XCD
- Actus-G
Technical details

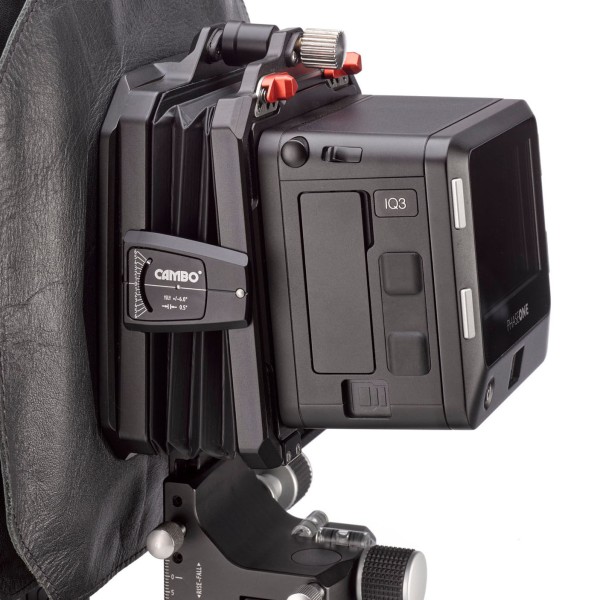

Built-in tilt function, +6/-6 degrees, close to optical center of sensor
SLW adapters
In order to use this product additional accessories are needed such as an interface plate to mount the preferred digital back.
Bellows
Furthermore, bellows that are comaptible with the ACDB-989 should be used.
- ACDB-250 as normal bellows
- ACDB-252 as wide-angle bellows
- ACDB-254 as long extension bellows (on AC-330 monorail)
- ACDB-256 as macro extension bellows (on AC-345 monorail)
