PCM
Precise Compact Tripod Head
PCM
Precise Compact Tripod Head

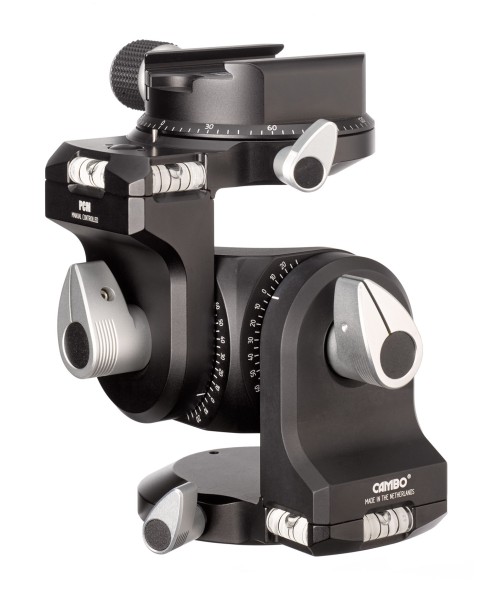

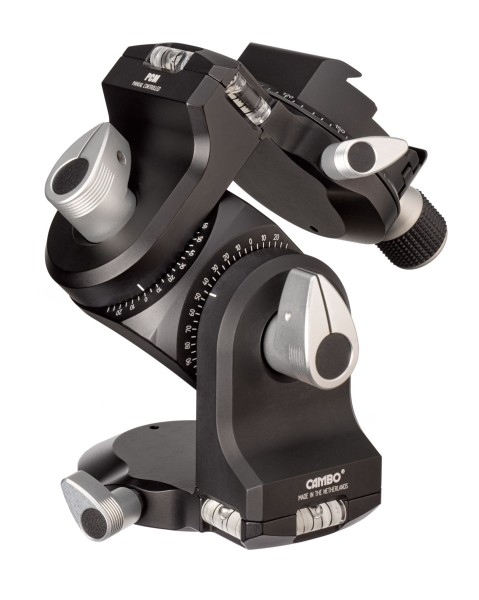

PCM is a manually controlled tripod head. Precisely position the camera with ease. The PCM makes it tilt, swing and rotate. All movements are controlled separately. Bottom and top plate both feature 360° rotation which makes it suitable for panorama shooting. The longer QR-XL is a useful accessory to enable rotation in the nodal point.
The PCM features a quick release top and comes with a 1/4" QR plate, which has a safety lock to prevent the camera from turning at the mount. View Cameras with an Arca-Style dove tail - like the Cambo Actus and WRS - mount directly onto the PCM, without the need for a QR plate.
Key Features PCM
- 360° manual panning at the top and bottom plate
- Position click indication every 90° at the top and bottom plate
- 140° X-axis tilt (30° backwards 110°forward)
- Separate manual movement around the X-axis
- 140° Y-axis pivot (30° backwards 110° forward)
- Separate manual movement around the Y-axis
- X-, Y- and Z-axis rotate over the same point
- When X-, Y- and Z-axis locking knobs are open the PCM can move freely like a normal spherical head.
- Adjustable manual friction
- Arca compatible QR clamp
- 4 large spirit levels
- Durable stainless steel 3/8’’ and 1/4’’ tripod mounting options
Size and weight
- height: 130 mm (incl. plate)
- width: 110 mm
- depth: 102 mm
- weight: 1200 gram
