RPS-255 motorised Copy Stand
RPS-255 motorised Copy Stand

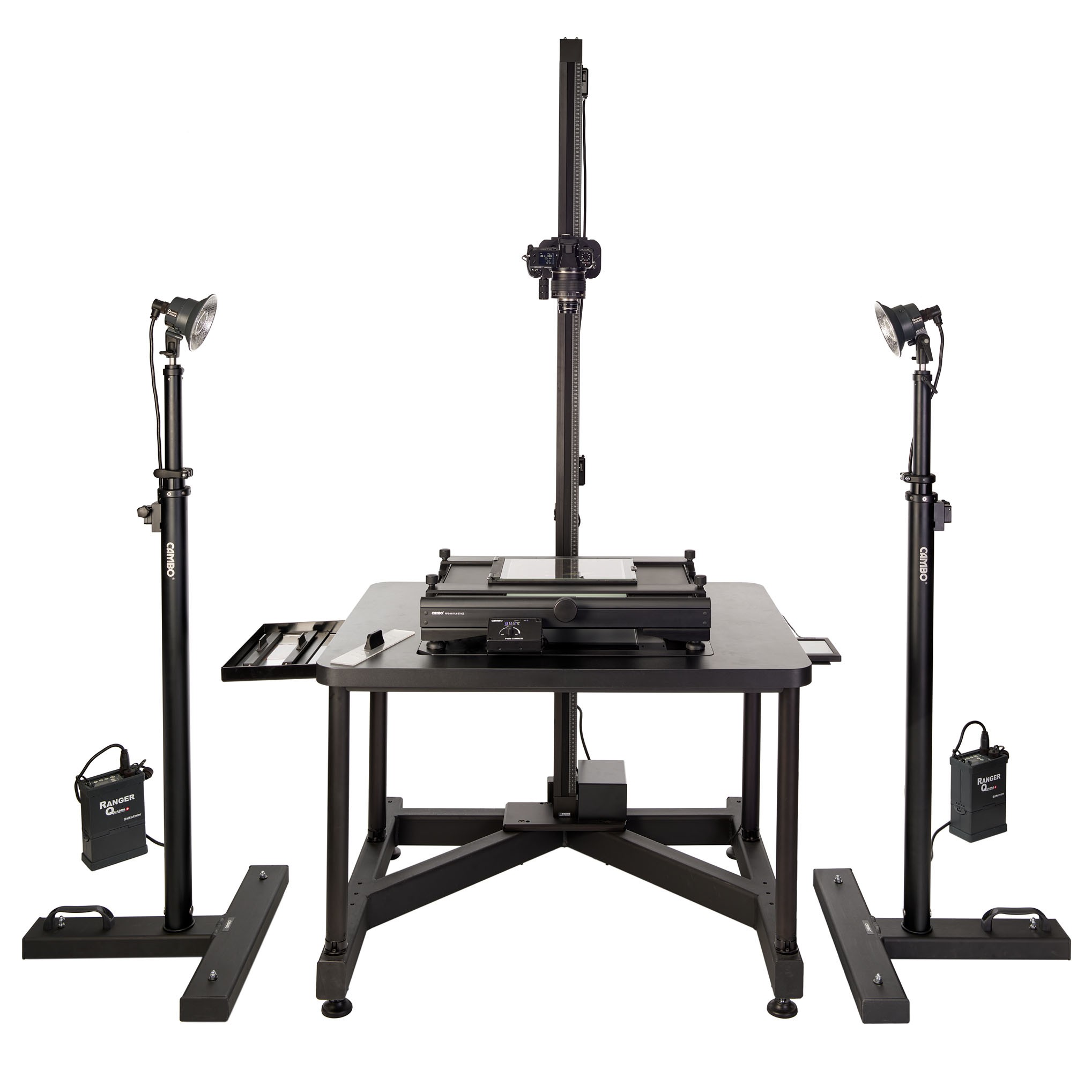

The Cambo RPS is the cultural heritage industry's leading copy stand. Its vibration resistant motorised column is made from heavy duty anodised aluminium and is the ideal platform for the digitisation of flat objects.

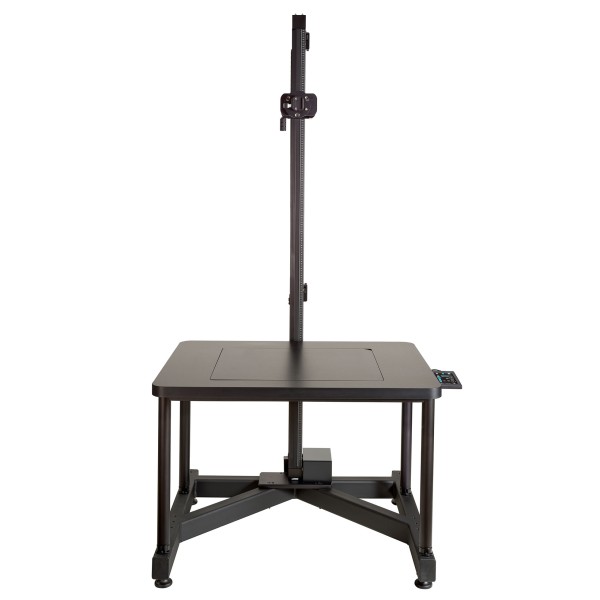

RPS-255 features a motorised vertical column with extended movement controls and geared moveable camera-arm. Its welded steel base has a removable base board with insert for the optional LED panel. Our copy stands facilitate absolute parallelity between camera and object. The optional memory function increases efficiency and repeatability when working at extensive archival projects.
The RPS Repro Stand System is an open system. It takes any repro camera with a max. load of 10 kg, and can be combined with any possible light source. Specialised lenses are key to improve quality. Our Cambo adapters and/or cameras enable you to use the best optics for the job.
Over the RPS-250 the RPS-255 has the distinction of a Smart Controller. It enables the operator to store and retrieve numerous height settings and to add notes.
- Levelling feet under base
- Baseboard mounts directly onto the base or on risers
- Height adjusters removeable/replaceable
- Insert for optional LED panel
- Comes with RPS-201 Smart Controller
- Speed adjustable from fast upto extremely small increments for focusing
- Base: 100 x 85 x 13 cm
- Board: 100 x 75 cm
- Height Base + Column: 218 cm
- Height Baseboard: 21 cm above floor/76cm with risers
- Motorised vertical height adjustment

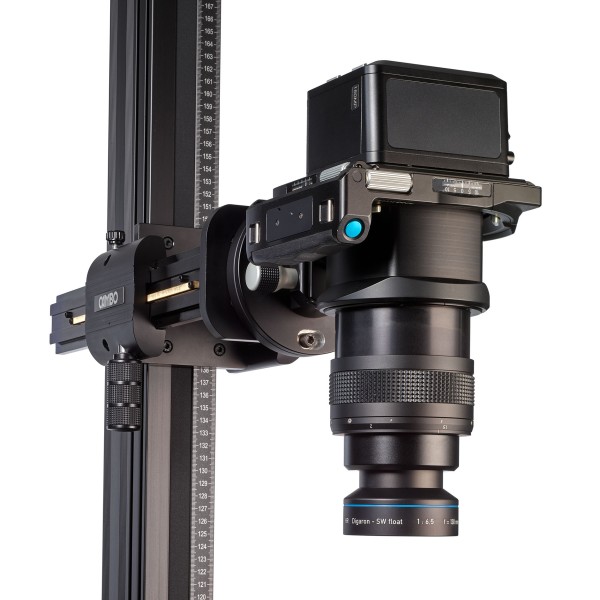

- Fine geared horizontal adjustable camera arm
- Automatic end stops
- Self-locking vertical position
- Reinforced Aluminium column
- Steel Base
- Base Board with cavity for optional LED
The Cambo Film Capture Stage can be found here
