RPS-500

Film Capture Stage

RPS-500

Film Capture Stage

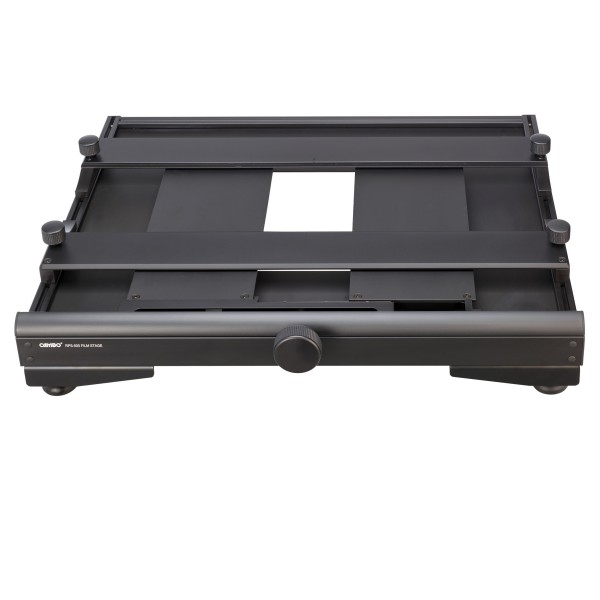

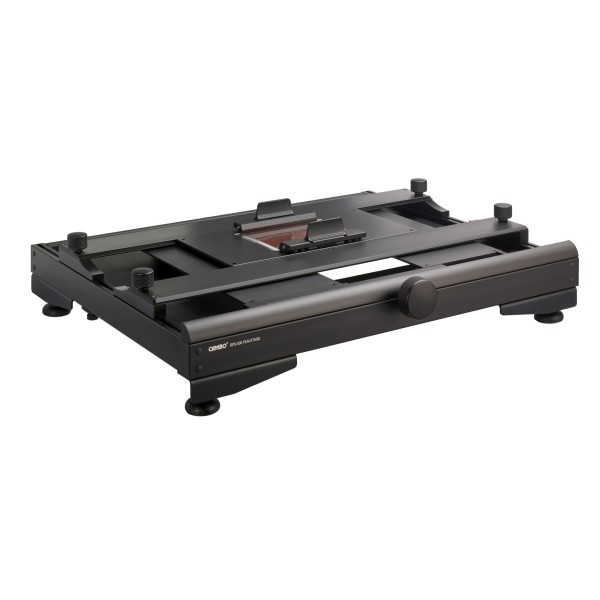

The Cambo RPS-500 Film Stage enables fast and reliable film positioning. Its stable frame is made out of aluminum and comes with four leveling feet. The integrated, adjustable, geared masks minimize flare and are effortlessly positioned by turning the large knob facing the operator. This ensures compatibility with Cambo's own and a broad range of 3rd party Film Holders.

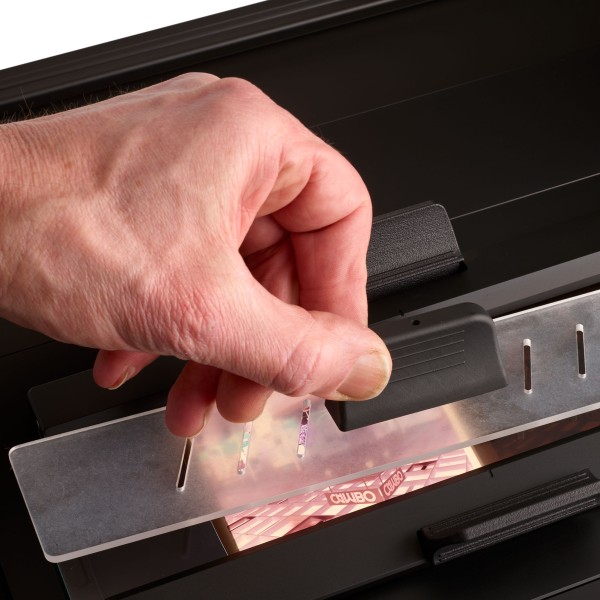

The Cambo Film Holders - ordered separately -  feature an AN glass bottom plate. Film strips or sheets are kept flat by tensioners at both sides. This procedure enables maximum sharpness without putting too much pressure onto the film.

RPS-500 can be placed on top of any suitable light source. Alternatively a flat  LED panel may be attached to the dedicated brackets at the bottom of the Film Stage.

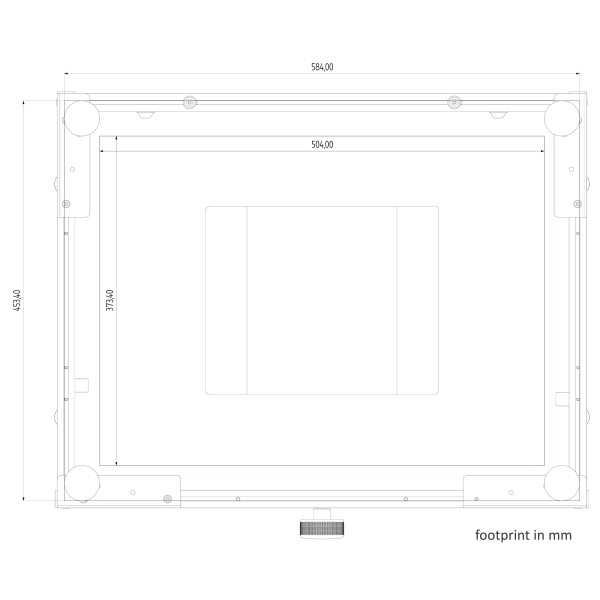

  • Dimensions: 60,5 x 47 x 11cm (l x w x h)
  • Weight: 6kg
  • Maximum size transparency 26 x 21,5cm
  • For use with an external light source. No LED panel included.

Various filmholders are available for the RPS-500 film stage

Go to accessories
