WRA-5105 HR-MACRO
WRA-5105 HR-MACRO

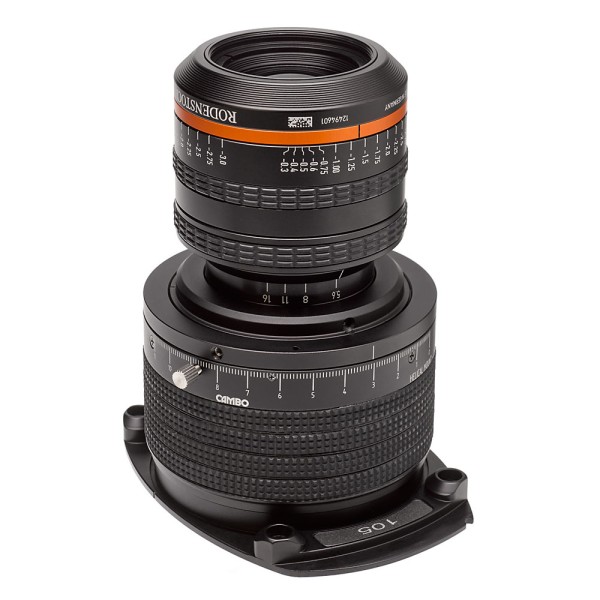

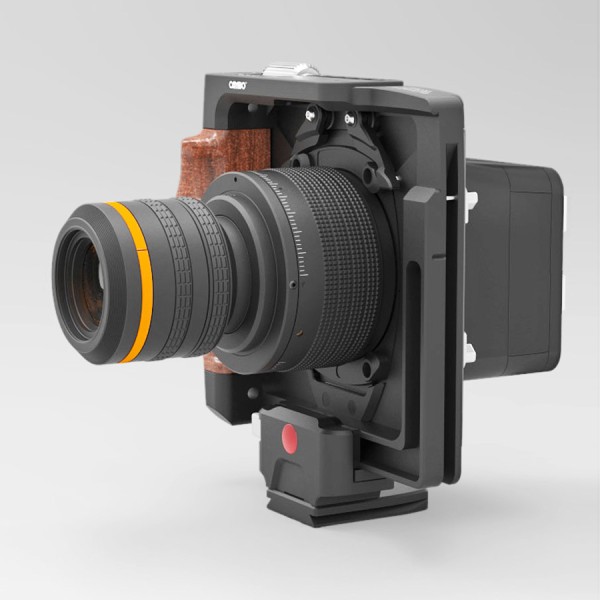

The WRA-5105 is a lens dedicated to the Cambo WRS/WRC in combination with a digital back with built-in Electronic Shutter. This lens is permanently attached to a WRS lens panel and has a focal length of 105 mm. This makes it an ideal companion for dedicated studio and primairily macro photography.
Cambo’s WRA-5105 is based on the Rodenstock HR-Macro lens with a focal length of 105mm. It is optimised for maginifications between 1:4 and 4:1, with a floating element for the best performance at the set magnification.
The design of this lens is build of 8 elements in 4 groups.
Please note that the aperture is manual and there are no electronical connections available nor needed. This lens has no shutter.
The default focussing range is 25mm from infinity which results in a ratio upto 1:4

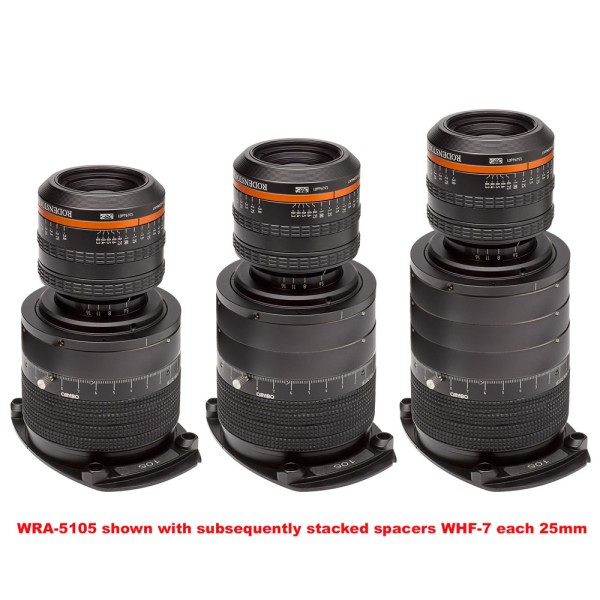

- with an added extension of 25mm, the focus range is between 1:4 upto 1:2
- with an added extension of 50mm, the focus range is between 1:2 upto 1:1,14
- with an added extension of 75mm, the focus range is between 1:1,14 upto 1:1
| Technical Details | |
|---|---|
| Focal Lenght | 105mm |
| Aperture range | f 5,6 - 16 (manual) |
| Lens construction | 8 elements/ 4 groups - 1 floating group |
| Front filter thread | m 40.5 |
| Dimensions (LxWxH) | 125x80x107 (includes WRE-panel) |
| Weight | 780 gram |
| Image circle | 82 mm |
| Build for | Cambo WRC/WRS |
| Works in combination with | Digital Backs with built-in E-Shutter |
| Available since | March 2018 |
