45REPRO-D
Monorail camera optimised for Cultural Heritage Photography
45REPRO-D
Monorail camera optimised for Cultural Heritage Photography

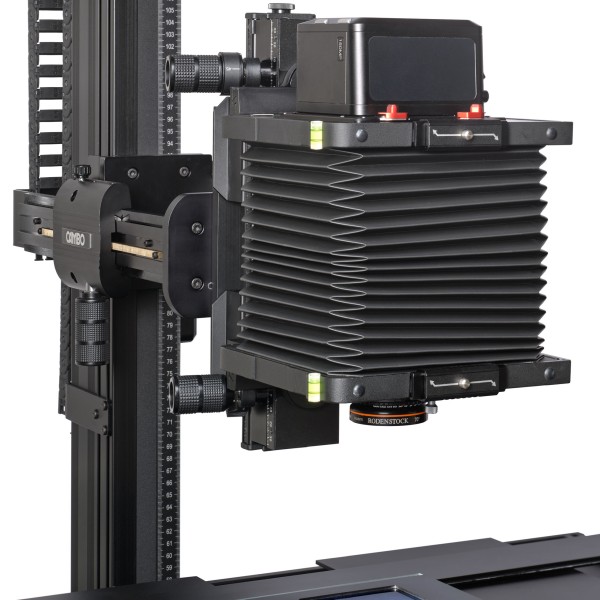

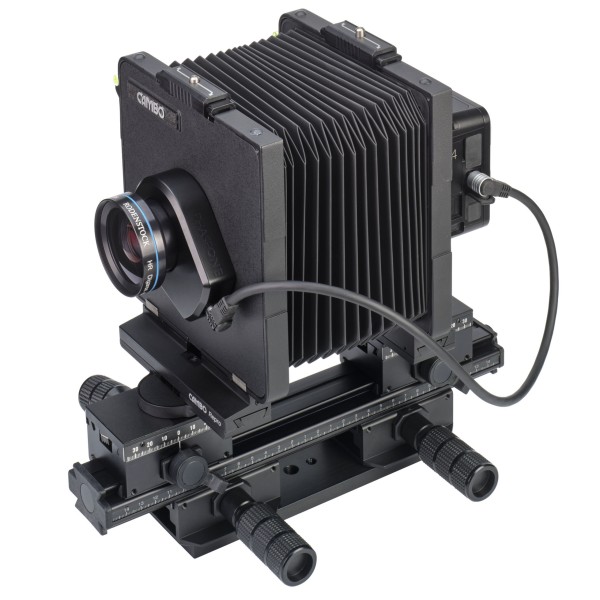

The 45 REPRO-D is a monorail camera optimised for Cultural Heritage photography.

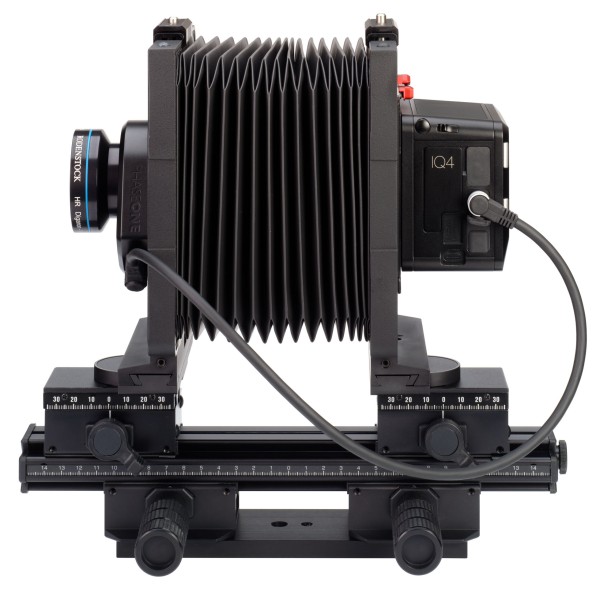

Its front and rear standards - without tilt and swing, to assure parallelity - are attached to a 42cm monorail and linked by a standard 40cm bellows. Longer bellows and rails, as needed for larger magnifications and long focal lengths, are available. To faciltate stitiching or for ease of positioning both standards can be fitted with lateral shift on request.

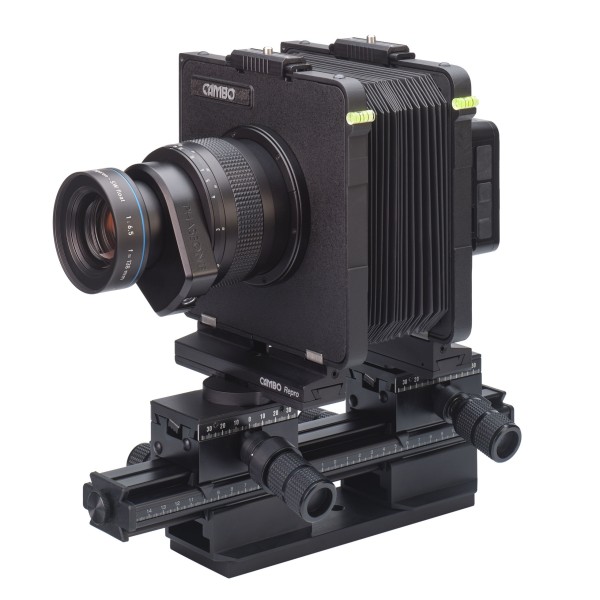

Rodenstock lenses for this system are available in Phase One X-Shutter or with Aperture Only for use with the on-sensor shutter of modern digital backs.
To attach digital backs Cambo advises the use of DPB-45 with one of the SLW-series adapters.
For use with 4x5 Scanning Backs (Anagram, Rencay) Cambo advises the UL-168 ground glass back.
| Monorail Length | 42 cm (Other monorail lengths are available) |
| Available monorail lengths | extendible with optional extensions of 15, 25, 42 or 65 cm (see accessories) |
| Frame front standard | 4x5 |
| Front standard compatability | accepting normal 4x5 (#0, #1 #3) lensplates |
| Frame rear standard | 4x5 |
| Rear standard compatability | accepting DPB-45, Sliding back or 4x5 ground glass back |
| Height from Tripod Mount to Optical Center | approx. 180 mm |
| Weight | 5 kg (excl. digital back) |
